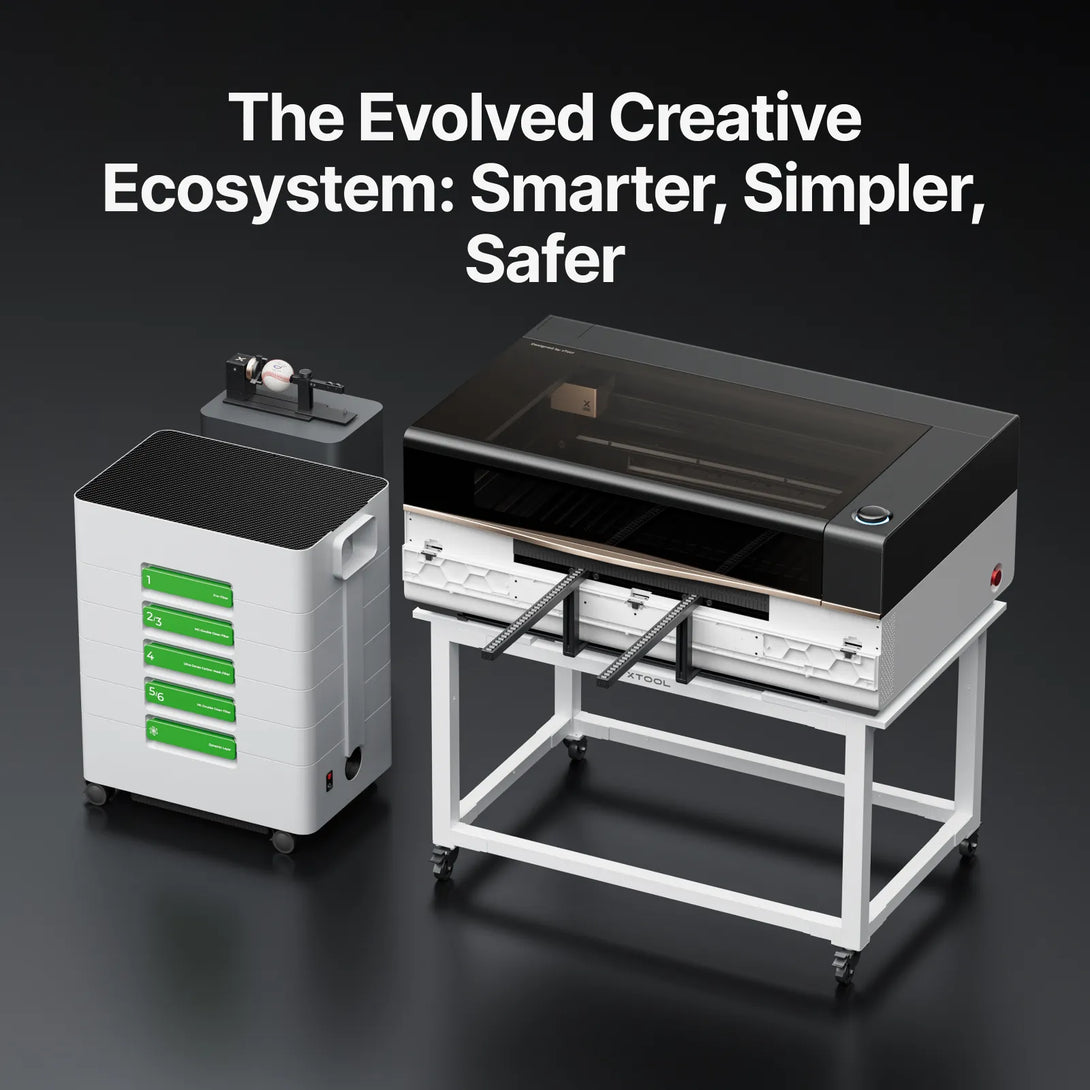

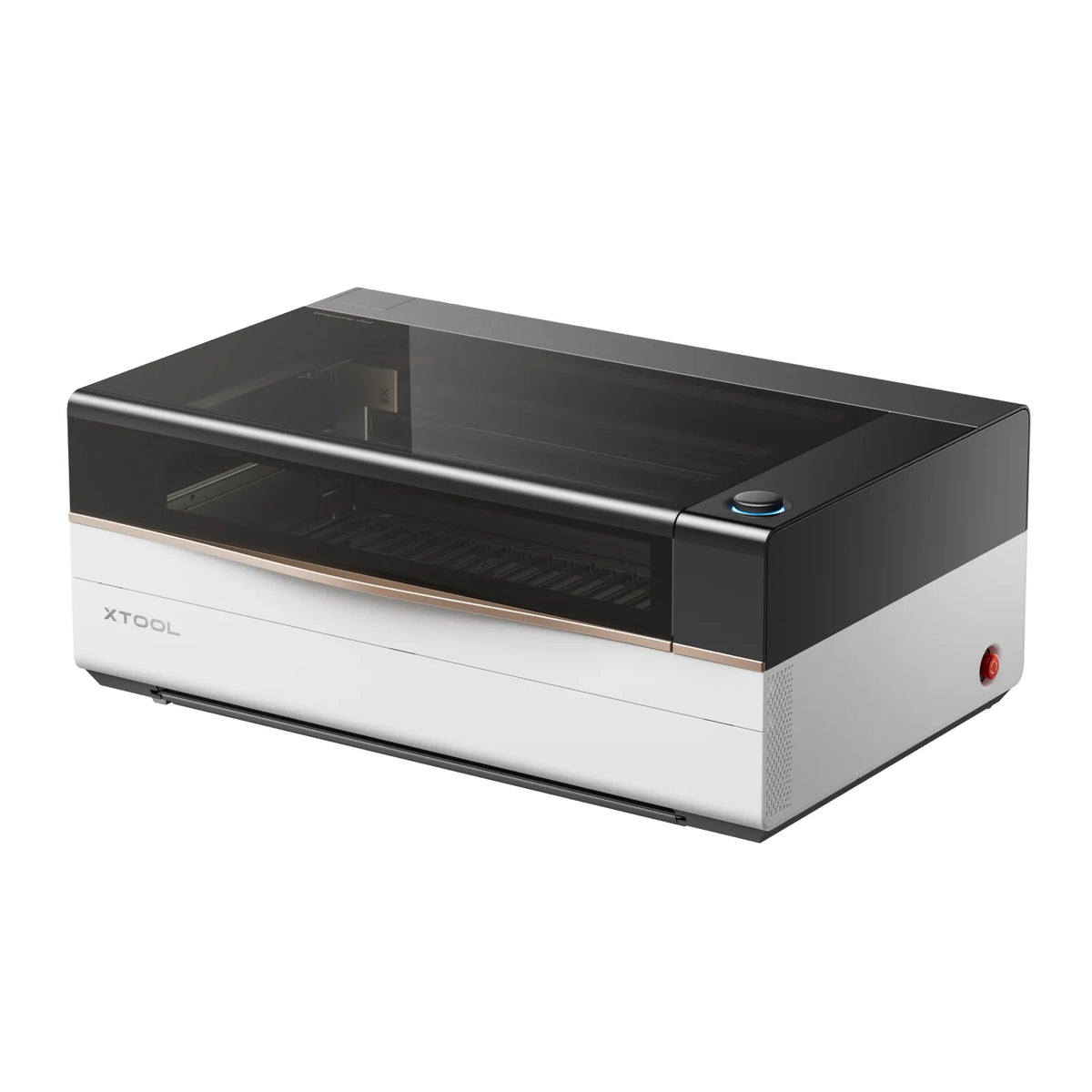

xTool P3: 80W CO2 Laser Cutter with Intelligent Automation
- 4 Camera Vision: For pinpoint material positioning and complete safety monitoring.
- Exclusive ACS™ Smart Workflow: Auto-Positioning, Autofocus, Auto LiDAR Ranging, and an Auto-Lifting Base.
- Smart Accessories: Enables 3D previews (RA3) & full-scale previews (Conveyor).
-
914mm × 457mm Working Area: Our largest workspace yet—2.3x larger than the P2S.
- 80W Power & 1200mm/s Speed: Double the processing efficiency of the P2S.
Price Match Guarantee. If you find the same stocked item, we will match it + Local Aus Support.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
| Laser Type | 80W CO2 Laser + 5W IR Laser (Optional) |
| Processing Mode | Laser Cutting |
| Supported Materials | Laser Cuttable: Wood, Acrylic, Fabric, Leather and more |
| Working Area | 36" x 18" (915 mm x 458 mm) |
| Max. Working Speed | 47.2 ips (1200 mm/s), X-axis Acceleration 19600 mm/s² |

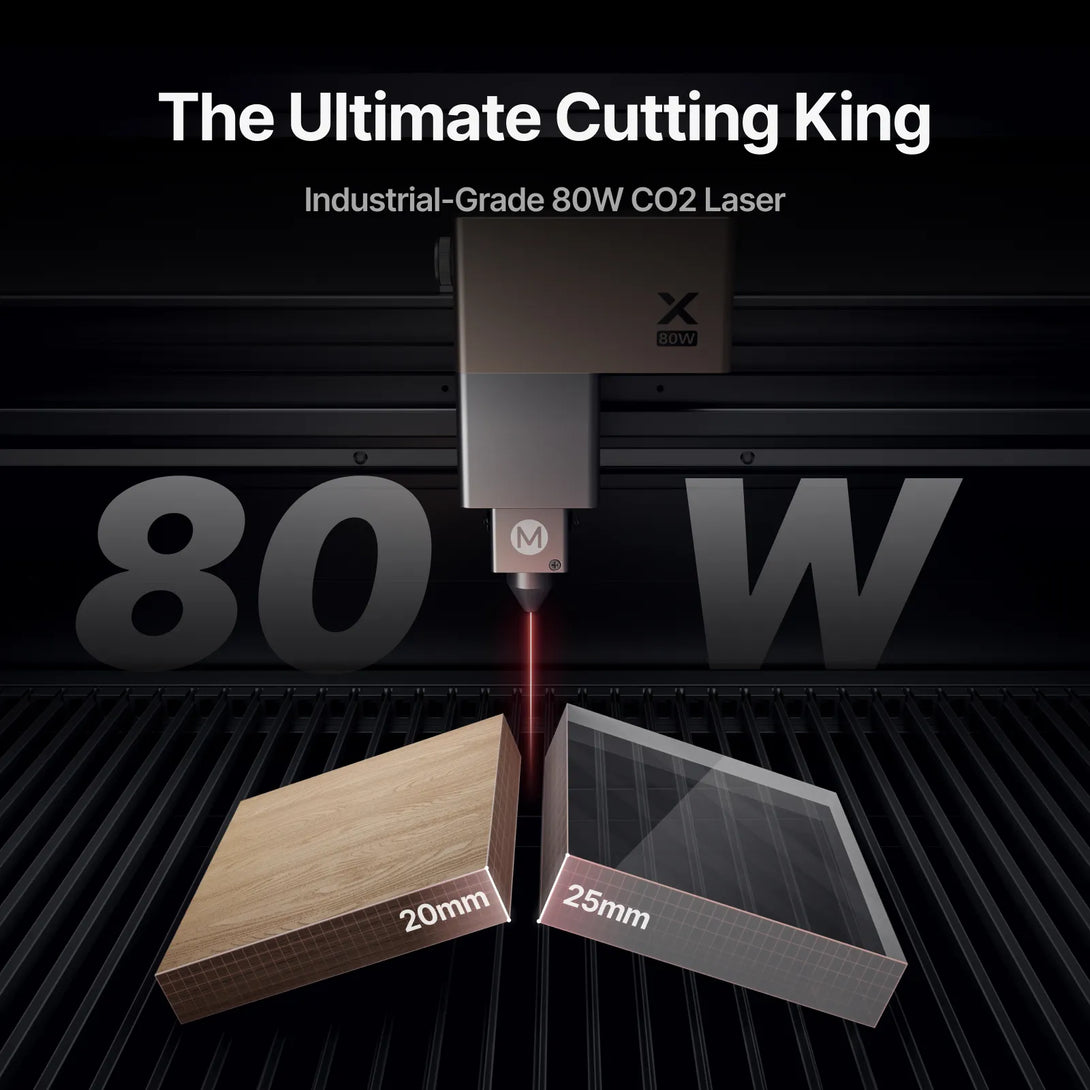

| Max. Laser Cutting Capacity (Basswood) | 0.79" (20 mm) in ONE PASS |
| Max. Laser Cutting Capacity (Acrylic) | 0.98" (25 mm) in ONE PASS |
| Max. Processing Height | 8.66" (220 mm) |
| Max. Rotary Engraving Diameter | 0 - 7.87" (0 - 200 mm) |
| Supported Software | xTool Studio |
| Operating System | Windows/ MacOS |
| Connection Method | USB/ Wi-Fi |
| Supported Files | SVG/DXF/JPG/JPEG/PNG/BMP/TIF |
| Almake Compatibility | Yes |
| Easy Operation | Yes |
| ACS™ (Automated Creation System™) | Yes |
| Built-in Camera | 16 MP SkyView Panoramic Camera + Close-range Camera + Side Camera × 2 |
| Positioning Method | Dual-Camera Positioning |
| Focus Mode | Autofocus |
| Ranging System | LiDAR Ranging System |
| Preview Method | Smart Camera Preview |

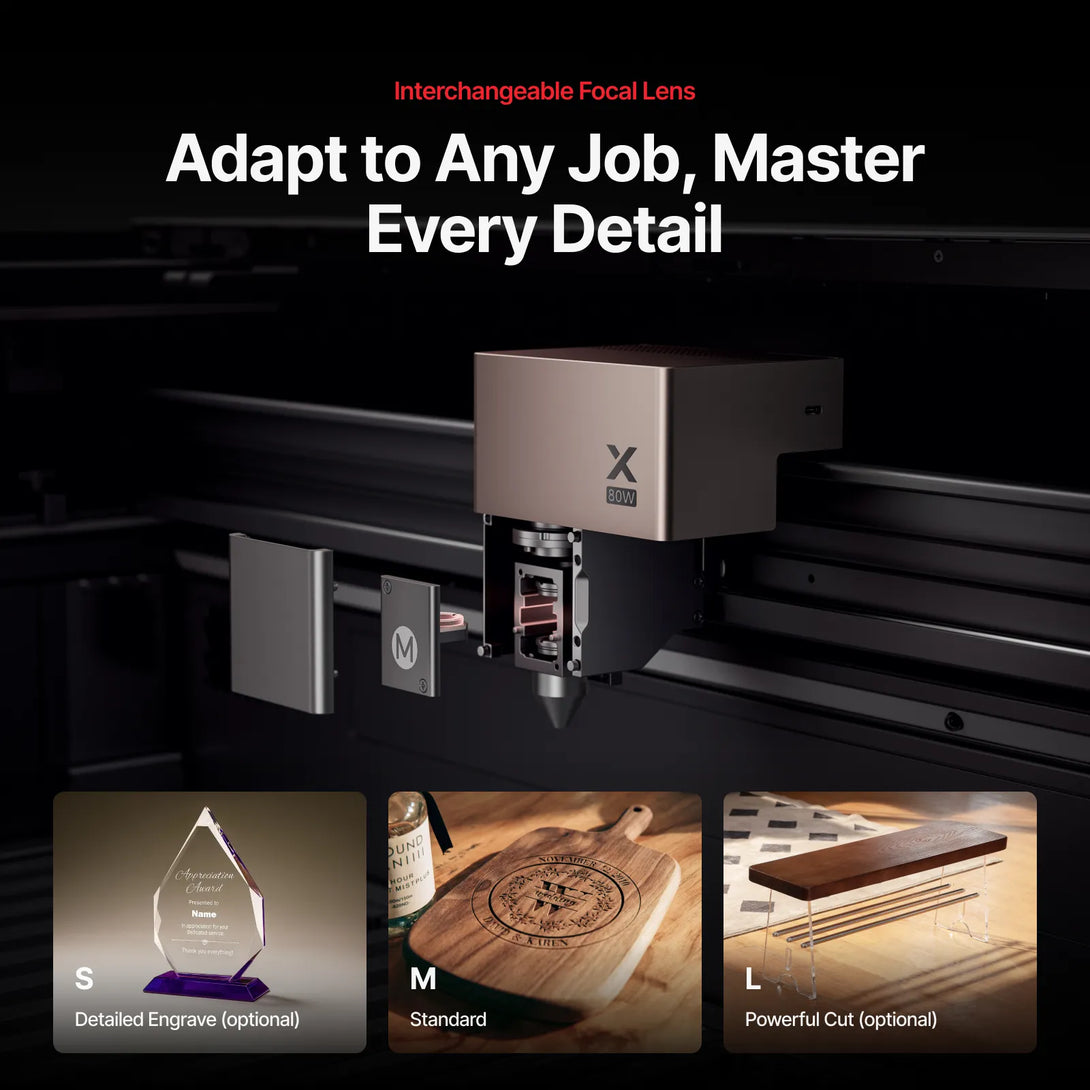

| Laser Spot Size | S Focal Lens: 0.0055" × 0.0063" (0.14 mm × 0.16 mm) (optional) |
| Positioning Precision | 0.0079" (0.2 mm), Camera |
| Motion Accuracy | 0.00039" (0.01 mm) |
| Safety Certification | Class 1 Laser Safety |
| Product Dimensions | 49.2" × 30.7" × 19.5" (1250 mm × 780 mm × 496 mm) |
| Product Weight | 231.5 lb (105 kg) |
| Max. Machine Input Power | 1400 W |
| Power Adapter Input Voltage | 100 V - 240 V, AC 50 Hz |
When you buy from Koenig, you're buying local support and a real Australian team behind you long after the sale. Backed by decades of experience, we offer Australian-focused products, reliable local support, and continuous innovation. Our mission is to empower you with high-performance, dependable technology that drives productivity and creativity. That means local warranty backing, access to spare parts, a showroom where you can see the machine demonstrated in person and our Price Match Guarantee .
Our Campbellfield, Victoria warehouse is available for Click & Collect and Machine demonstrations. If you'd like to see a machine running in person, simply book a demonstration with our team first.
You'll be supported by Koenig's in-house technicians, based locally in Victoria. Call, and you'll speak directly to someone who can help.
Our flagship CO2 lasers represent a professional-grade evolution from the P2S foundation:
- P2 Smart Laser: Designed for creative professionals, focusing on intelligent features that simplify complex creation.
- P3 Productivity Laser: Built for small business production, focusing on speed and efficiency to maximize commercial output.

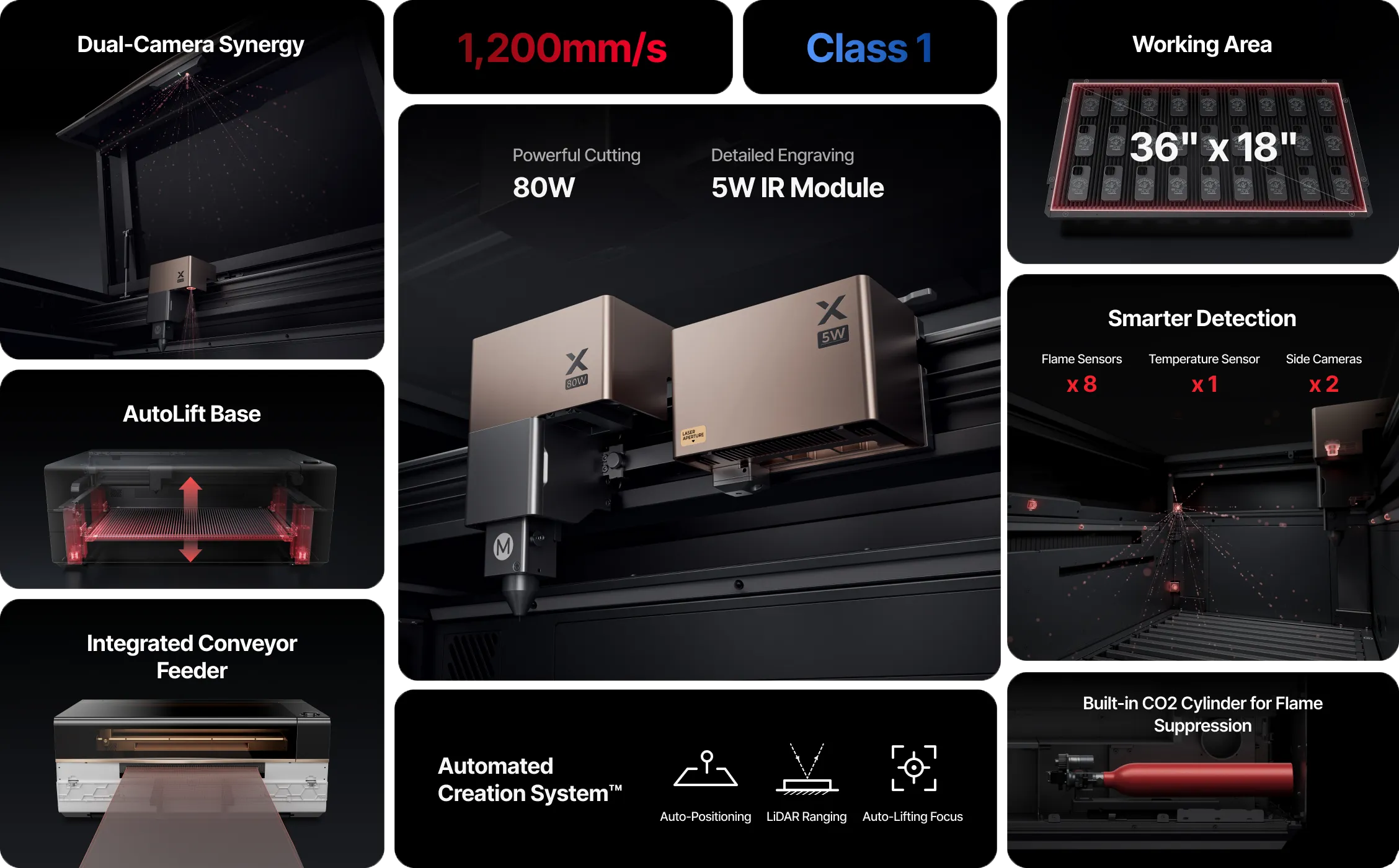

The P3 represents a comprehensive and significant upgrade over the P2S across three core areas: industrial performance, intelligence and automation, and safety. In short, the P3 is engineered for users seeking higher productivity, broader material compatibility, and a more automated and secure workflow. Here are the key differences:
- Industrial Performance & Material Capability:
- Power & Functionality: The P3 features a more powerful 80W CO₂ laser (compared to 55W on the P2S) and offers an optional 5W Infrared (IR) laser module. This dual-laser capability allows the P3 to engrave on metals and plastics, offering "limitless material" possibilities that the P2S cannot handle.
- Size & Speed: The P3's working area is 2.3 times larger than the P2S's, and its maximum speed and acceleration are substantially higher (e.g., 1200mm/s vs. 600mm/s). This translates to greater productivity and the ability to tackle much larger projects.
- Processing Depth (Z-Axis): The P3 fundamentally changes 3D object engraving with a built-in, motorized AutoLift Base that comes standard. This provides a massive 8.66" (220 mm) of vertical space right out of the box. In contrast, the P2S requires an optional, manual Riser Base to achieve its maximum height of 215mm.

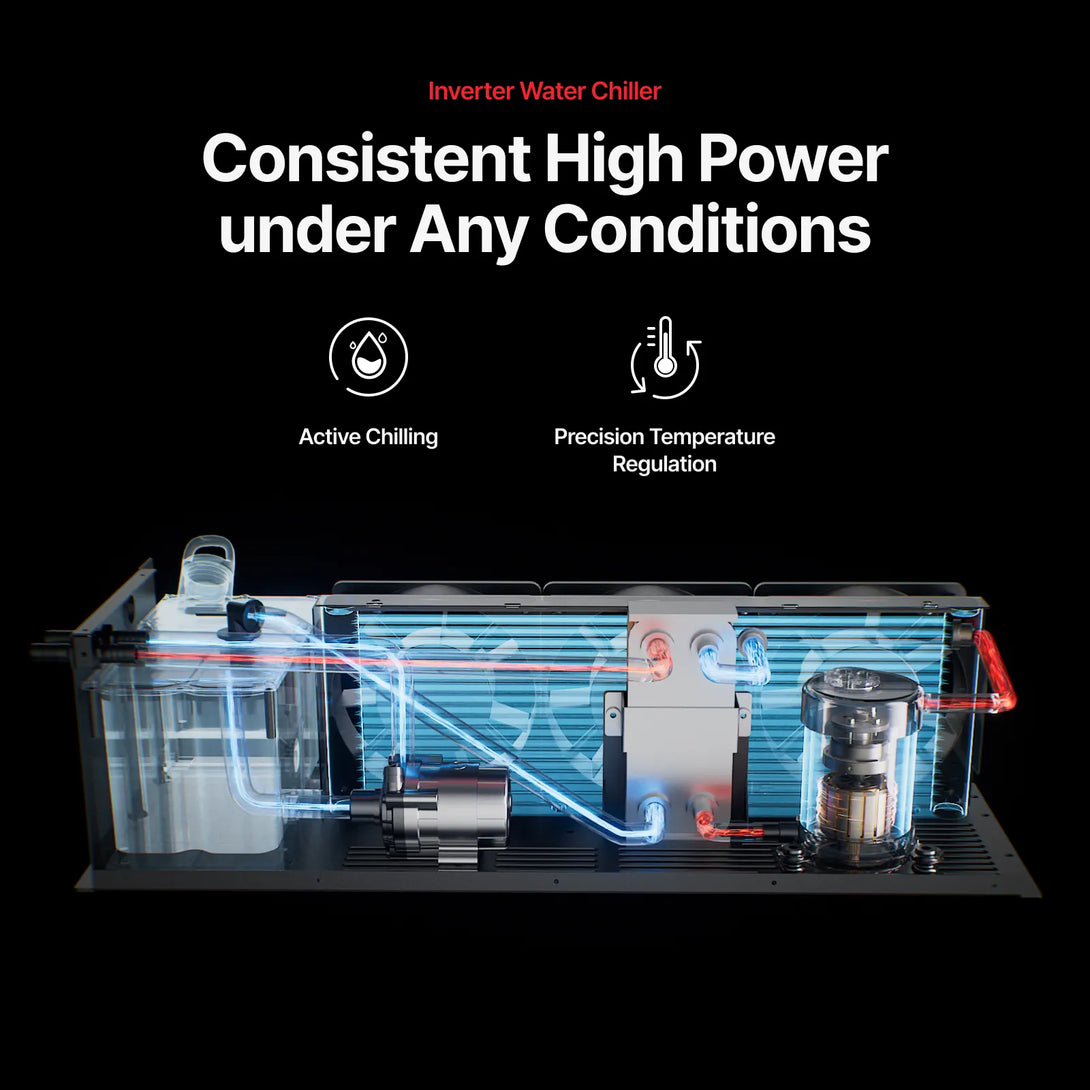

- Cooling System: The P3 includes a more advanced built-in Inverter Water Chiller to support its more powerful laser system. It ensures stable, high-performance output from the P3 across varying environmental conditions, powering your productivity all day.
Intelligence & Automation:
- Core Workflow: The P3 introduces the ACS™ Intelligent Workflow, which seamlessly integrates features like Auto-Positioning, Autofocus, an AutoLift Base that automatically adjusts for object height, and an integrated, quick-release Automatic Conveyor Feeder to minimize manual intervention. In contrast, the P2S requires manual height adjustments and conveyor assembly for each use.
- Rotary Engraving: This is one of the most significant upgrades. The P3's Smart RA3 Rotary accessory uses 360° LiDAR Mapping to create a perfect 3D preview before engraving and supports batch processing. The P2S's rotary tool relies on manual measurements, offers no preview, and is limited to single-item processing.
Safety System:

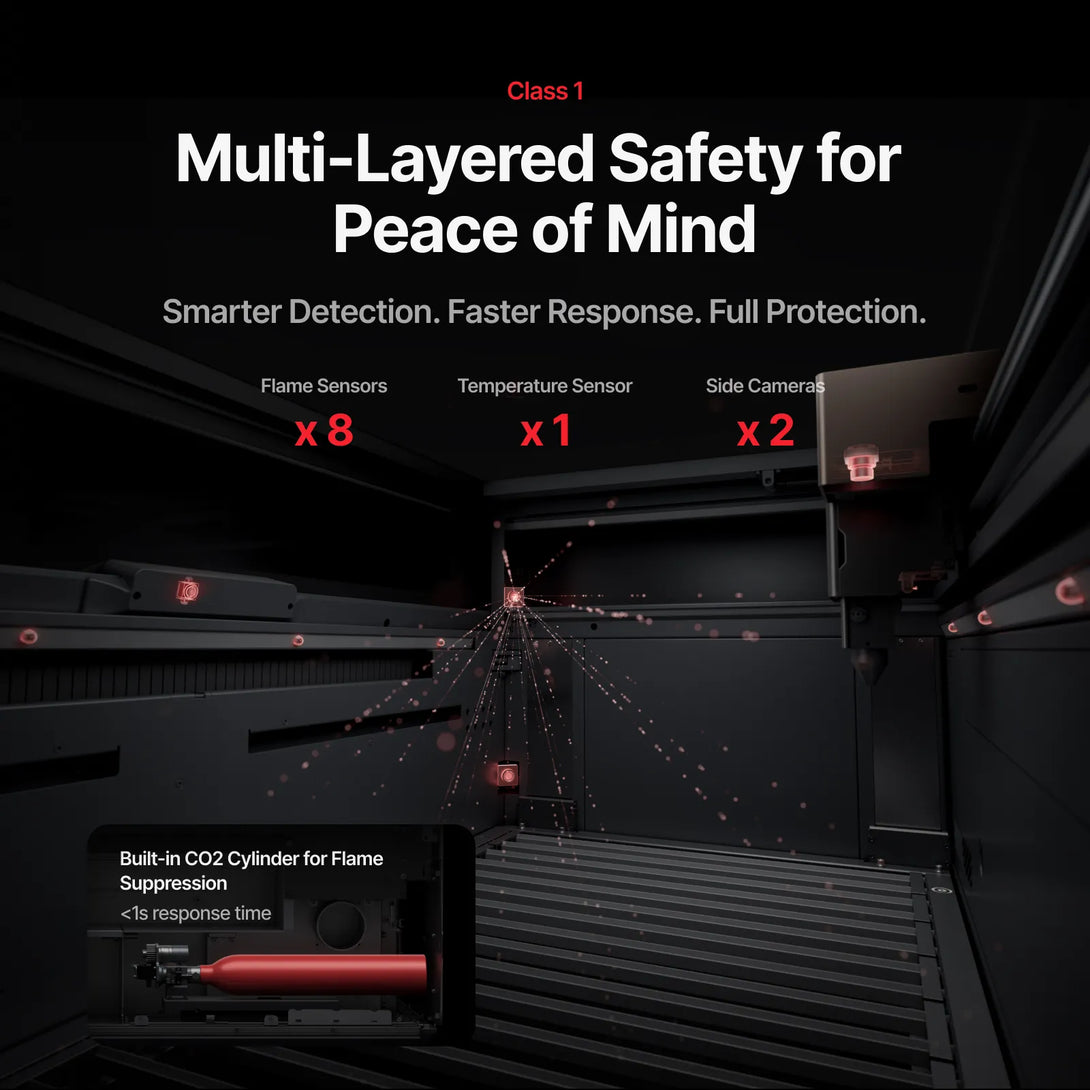

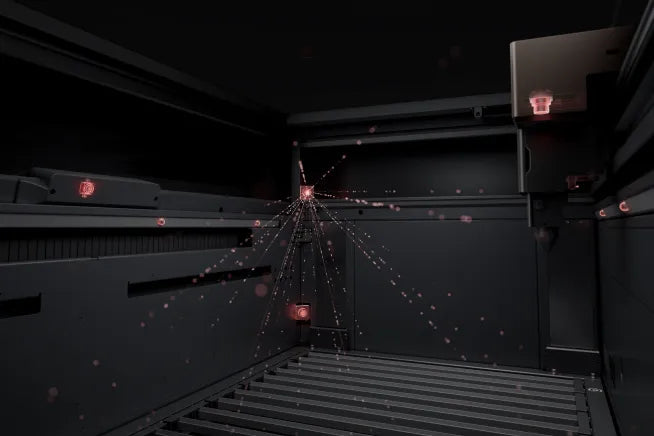

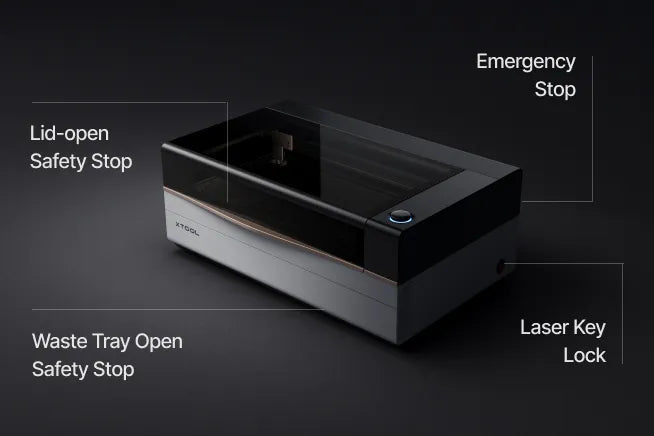

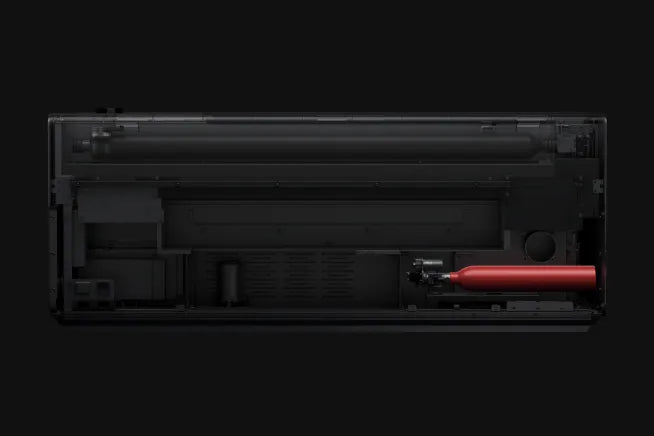

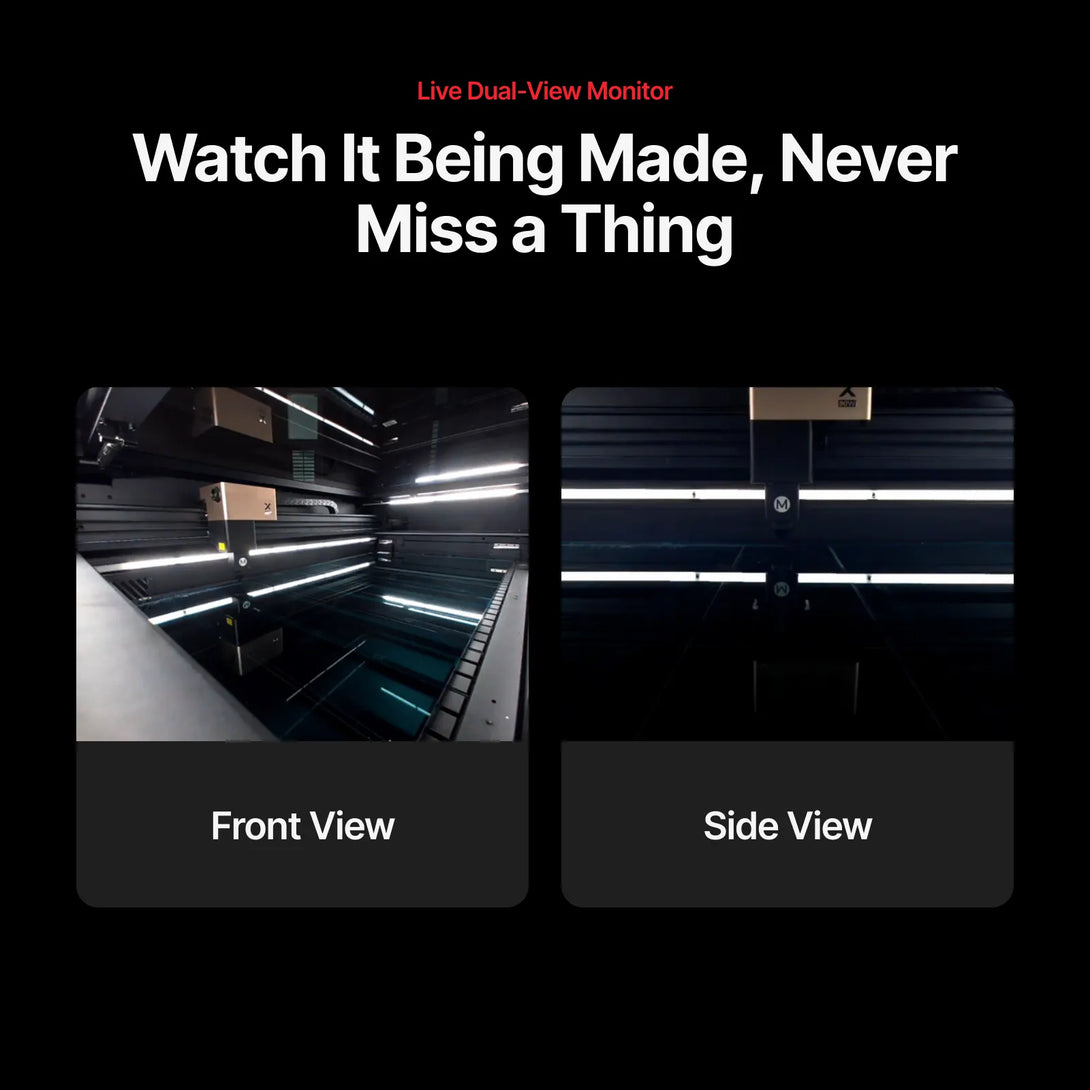

- The P3 takes a major leap forward in safety, achieving a certified Class 1 laser safety rating, while the P2S is a Class 4 device. This top-tier safety is made possible by a multi-layered system. The P3 integrates an Upgraded High-Precision Perception System, which combines 8 Infrared (IR) sensors, a temperature sensor, and side cameras with an advanced vision algorithm; the P2S, by contrast, relies on camera recognition. Furthermore, the P3 comes standard with a built-in CO₂ active fire suppression system, a critical feature that requires the separate purchase of an optional Fire Safety Set on the P2S.
P3's revolutionary ACS™ (Automated Creation System™) workflow completely frees users from tedious manual setups, achieving an ultimate convenience of "place your material and go." It makes technology serve creativity, rather than hinder it, ensuring every creation is precise, flawless, and seamless. Workflow to Achieve Hardware Synergy:

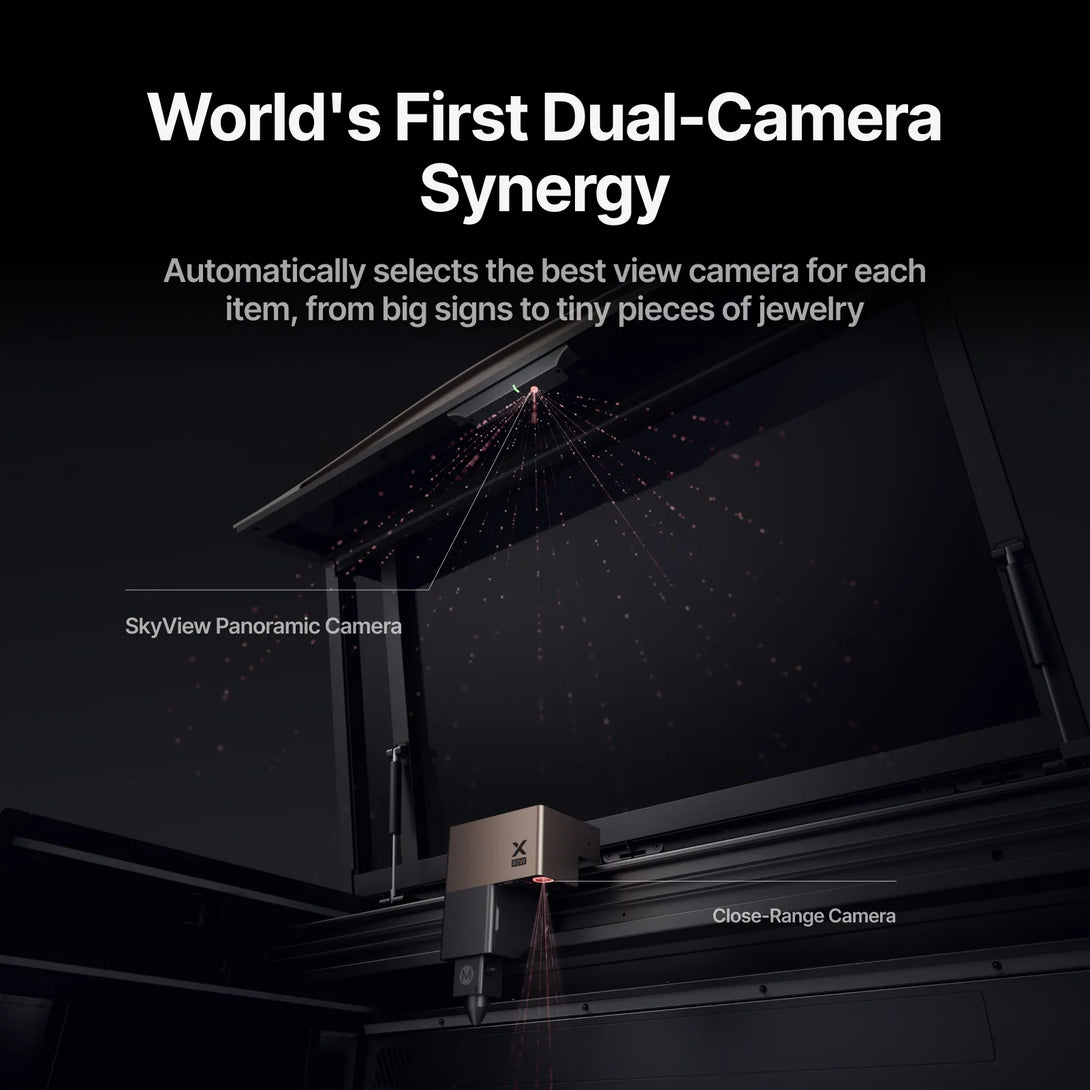

- Auto-Positioning: Simply close the lid. A high-resolution, dual-camera system (16MP SkyView camera and a close-range detail camera) instantly captures a live image of the entire workspace. This allows you to place your design onto the material with pinpoint accuracy directly in the software.
- Autofocus: Our advanced LiDAR Ranging System measures the precise distance to the material's surface.
- The AutoLift Base then instantly brings the material to the perfect focal point, ensuring flawless results every time—no manual tools required.
P3 expands your creative boundaries. Thanks to its new modular capabilities, it will be the first xTool CO2 machine to unlock direct engraving on plastic and metals like stainless steel and aluminum, opening up a whole new world of possibilities.

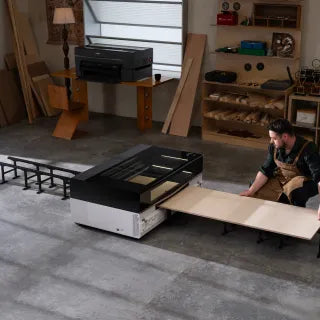

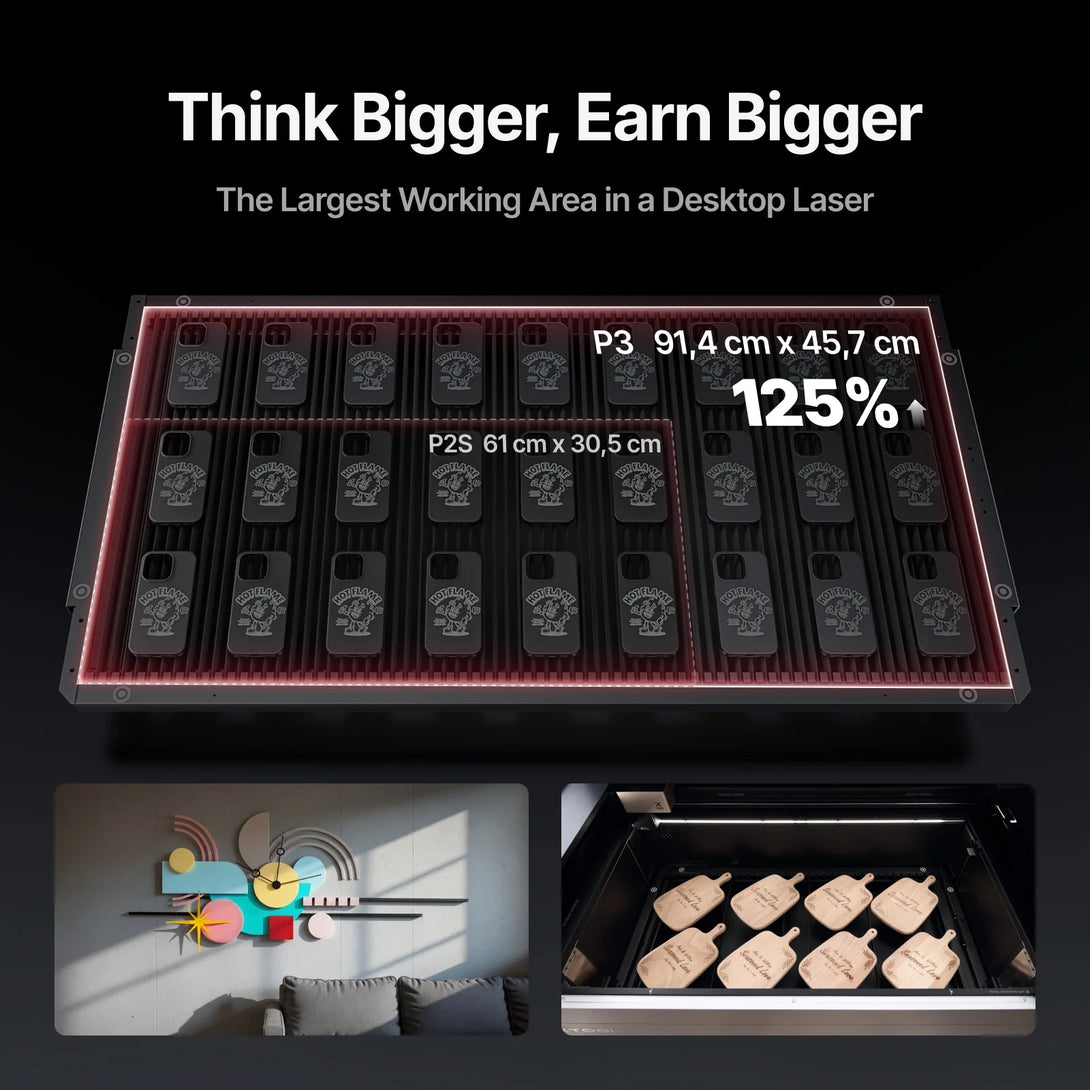

- Working Area: The standard working area of the xTool P3 is an expansive 36" x 18" (915 mm x 458 mm). This is approximately 2.3 times the area of the P2S, allowing you to easily handle large-scale projects or more efficient batch production. Furthermore, for projects that require processing of extra-long materials, the P3 is compatible with the optional Intelligent Conveyor Feeder, which unlocks the ability to work on materials of virtually any length.

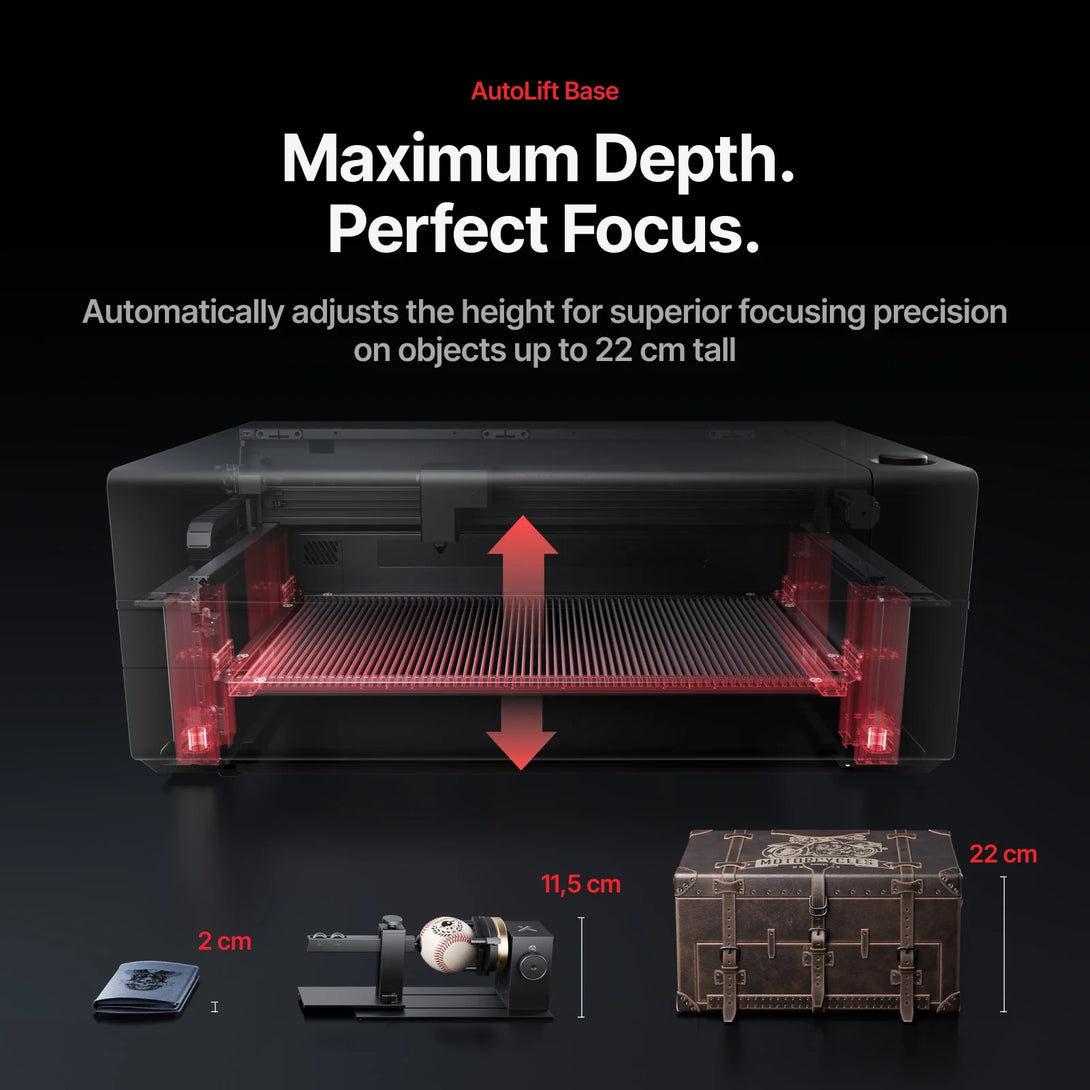

- Object Thickness (Height): Unlike older models that require a separate, manual riser base, the P3 features a built-in AutoLift Base (weighing capacity: Under 35.3 lbs (16 kg)) as a standard feature. This integrated system provides 8.66" (220 mm) of vertical space, allowing you to engrave directly on bulky items like briefcases and gift boxes with zero extra hassle.

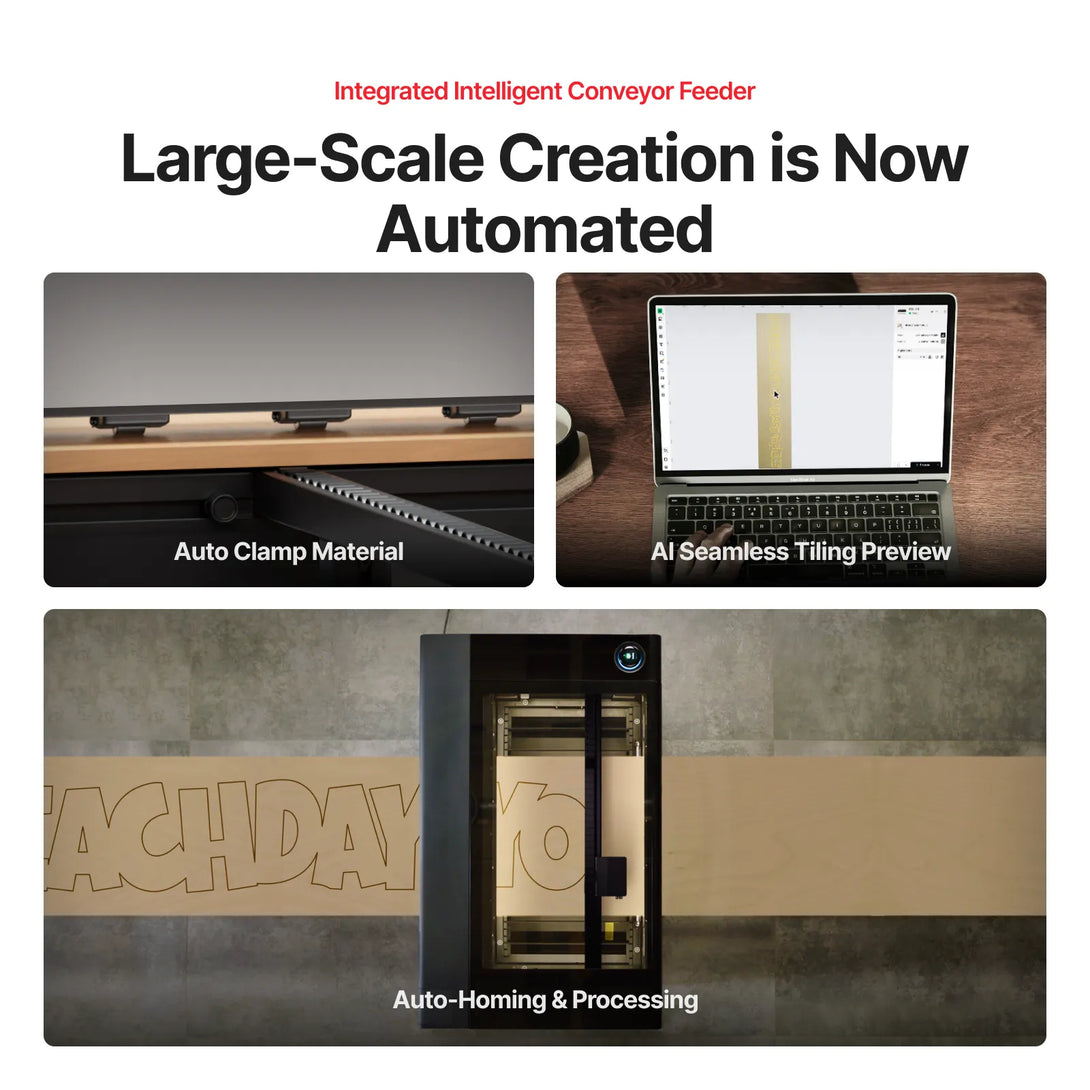

The P3 Intelligent Conveyor Feeder is a revolutionary upgrade, shifting from the P2 Automatic Conveyor Feeder's manual, knob-based adjustments to an automated and intelligent workflow. The P3 uses a camera to provide an entire material preview, automating everything from clamping to placement and feeding. Performance is also dramatically enhanced, enabling the processing of 22% wider, 85% thicker, and unlimited-length materials with significantly less waste. This is all achieved within a seamlessly integrated design that installs once and is always ready.

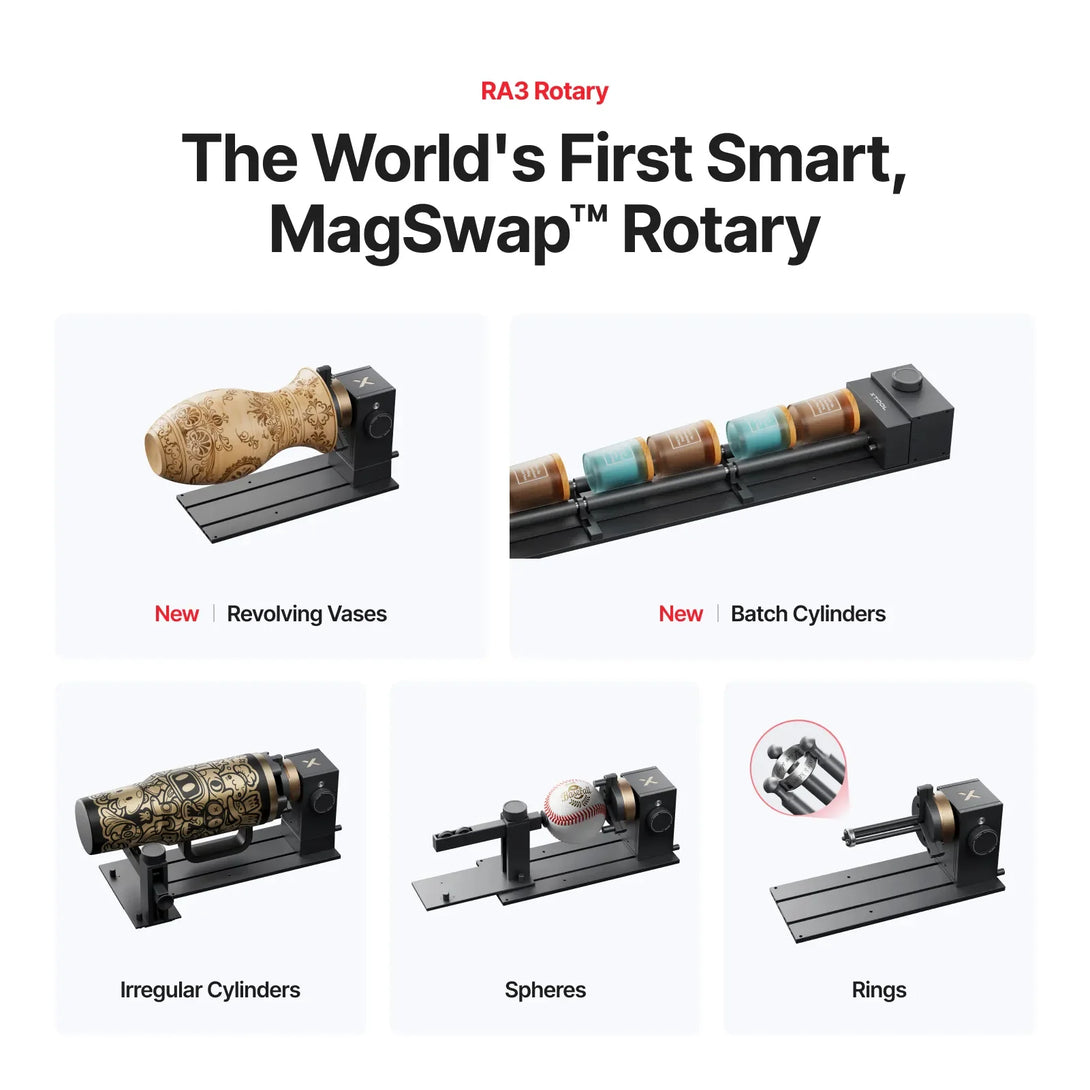

The RA3 is a revolutionary upgrade to the RA2 Pro, transforming it into a professional production system that is simply smarter, faster, and more powerful.
- Smarter: It introduces an intelligent workflow with Rotary Mode Recognition, 360° LiDAR Mapping™, and 3D Preview. This eliminates guesswork and unlocks flawless full-wrap engraving on complex objects like revolving vases.
- Faster: The MagSwap™ design provides an instant, tool-free setup that turns minutes into seconds, while engraving speeds are 2.4x faster*.
- More Powerful: It adds exclusive Batch Processing to scale your business and a larger, more secure grip for larger cylinders.
*The 2.4x faster speed is based on a comparison between the RA2 Pro and RA3 on the xTool P2S.

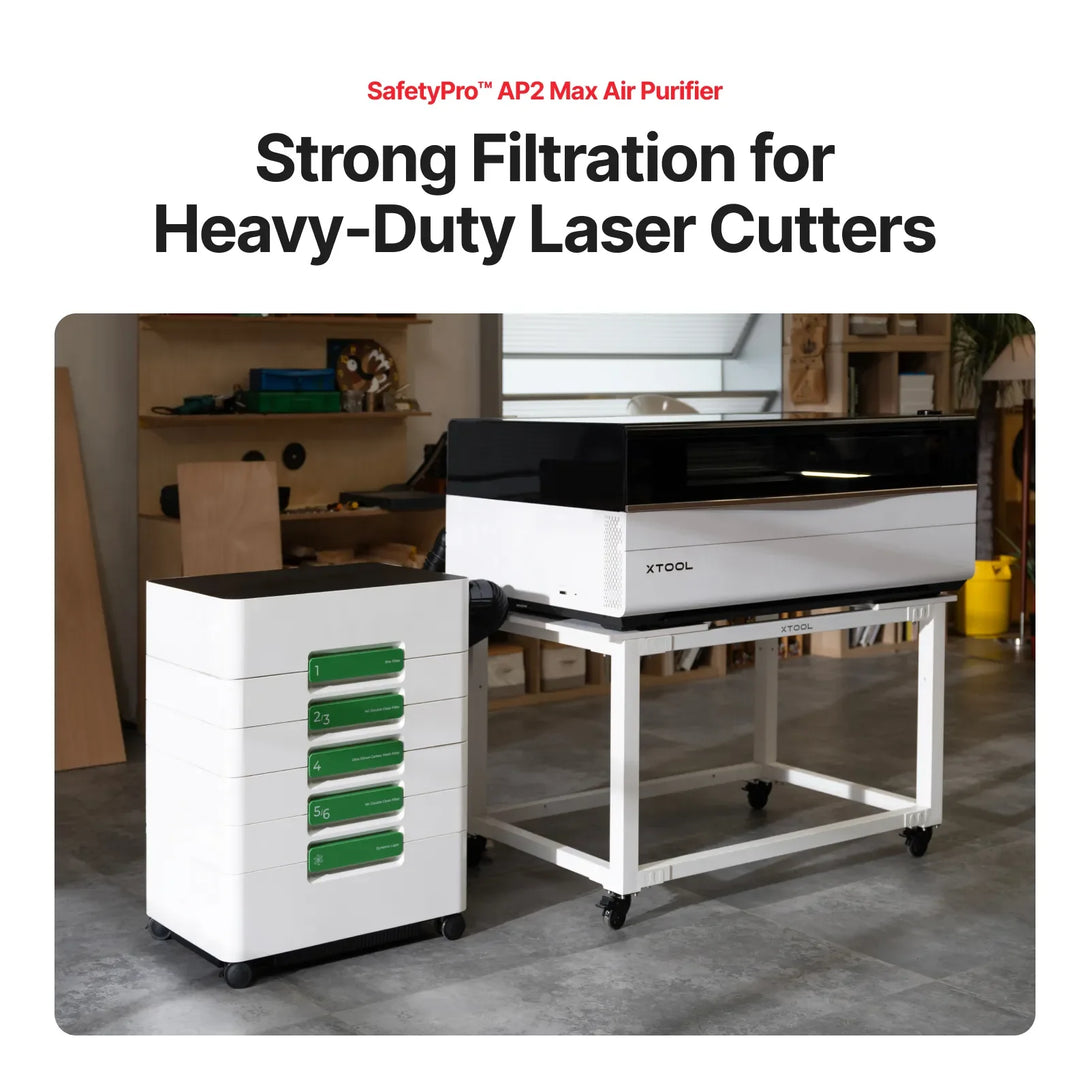

The AP2 Max is the industrial-grade version of the AP2, with 3 core upgrades:
- Performance: It has over 4.6x airflow, engineered for heavy-duty laser cutters like the P3 and MetalFab.
- Protection: It adds an exclusive formaldehyde filter that decomposes harmful gases into harmless substances.
- Filter Capacity: It features 4x filter capacity for a much longer lifespan.
