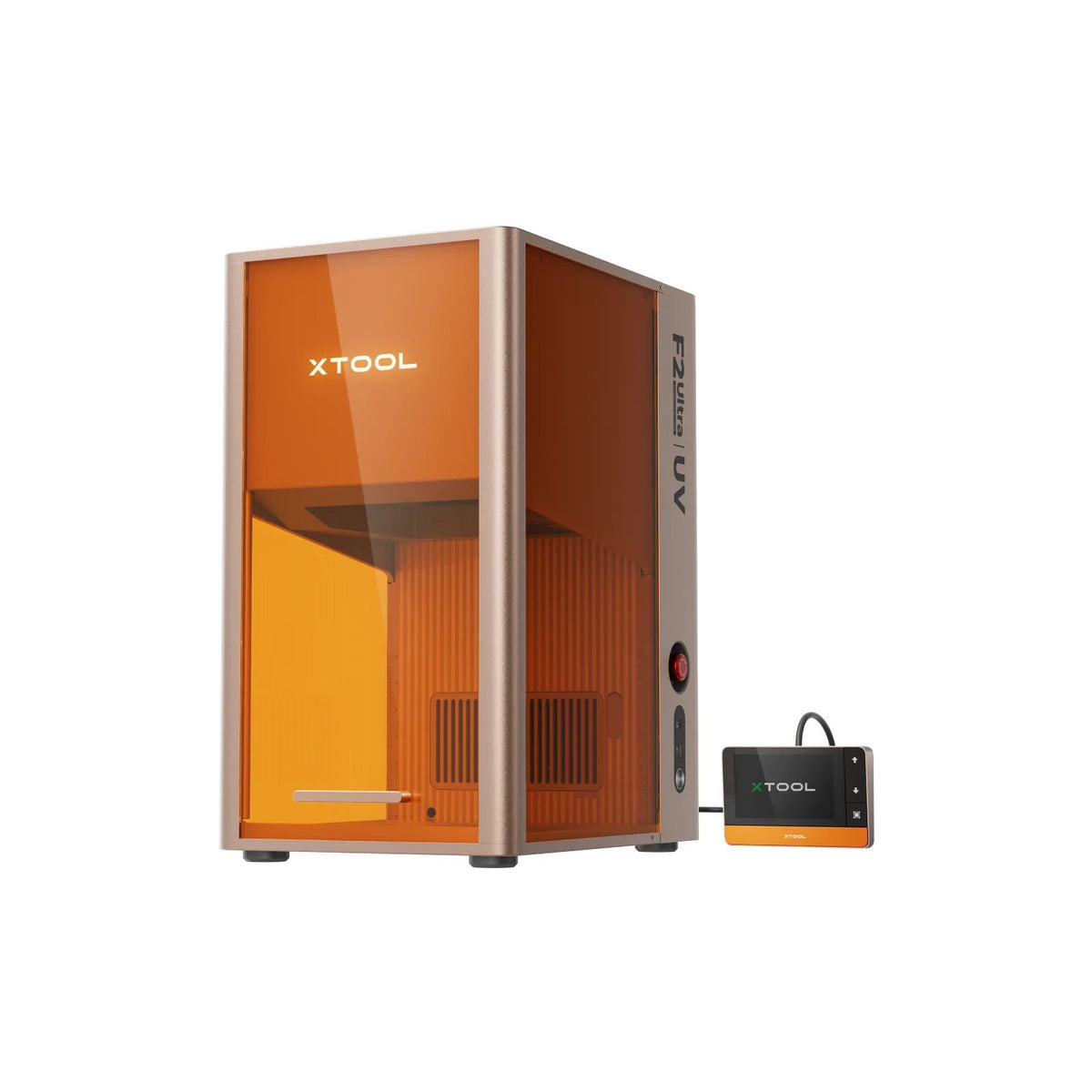

xTool F2 Ultra UV: 5W UV Laser Engraver
-
Master of Glass. Excels in 3D inner engraving, embossing, cutting, and precision flat & rotary engraving.
-
Unmatched Material Compatibility. Compatible with crystal, glass, ceramic, acrylic, plastic, metal, wood, and more.
-
Micron-Level Precision, Flawless Detail. 100× finer than other lasers, capturing every nuance.
-
Burn-Free Edges, Clean Results. With cold processing, no prep or polishing—perfection in one step.
-
User-Friendly. Dual 48MP cameras, one-click 2D to 3D smart software, 15,000 mm/s speed, large working area.
Price Match Guarantee. If you find the same stocked item, we will match it + Local Aus Support.
Pairs well with
Features
In the Box
Specifications
| Laser Type | 5W 355 nm UV Laser |
| Processing Mode | Laser Engraving |
| Supported Materials | Laser Engravable: Glass, Crystal, Acrylic, Wood, Metal, Leather, Plastic, Rubber, Silicone, Ceramic and more |
| Working Area | Inner Engraving: 2.8" × 2.8" (70 mm × 70 mm) |
| Max. Working Speed | 590.55 ips (15,000 mm/s) |
| Max. Laser Cutting Capacity (Basswood) | 0.59" (15 mm) in Multiple Passes |
| Max. Laser Cutting Capacity (Acrylic) | 0.47" (12 mm) in Multiple Passes |
| Max. Processing Height | 5.9" (150 mm) |
| Max. Rotary Engraving Diameter | 5.9" (150 mm) |
| Pre-assembled | Yes |
| Built-in Camera | 48 MP Dual Cameras |
| Positioning Method | Camera Positioning |
| Focus Mode | Autofocus |
| Ranging System | LiDAR Ranging System |
| Preview Method | Smart Camera Preview |
| Laser Spot Size | 0.02*0.02 mm |
| Positioning Accuracy | 0.0079" (0.2 mm), Camera |
| Ranging Accuracy | 0.0079" (0.2 mm), Camera |
| Image Resolution | 48MP |
| Motion Resolution | 0.00005'' (0.00133 mm) (Inner Engraving) |
| Vector Fitting Resolution | 0.00004'' (0.001 mm) |
| Safety Certification | Class 4 Laser Safety |
| Machine Dimensions | 11.6'' x 16.9'' x 20.5'' (294 mm x 429 mm x 520 mm) |
| Machine Weight | 49.6 lb (22.5kg) |
| Max. Machine Input Power | 348W |
| Power Adapter Input Voltage | 110 V - 240 V, AC 50/60 Hz |
| Storage Temperature | -10 ℃ - 60 °C |
| Operating Temperature | 10 ℃ - 30 °C |
| Storage Humidity | 10 - 60% Rh |
| Supported Software | xTool Studio |
| Operating System | Windows/macOS |
| Connection Method | USB/Wi-Fi/IP |
| Supported Files | 2D: SVG, DXF, JPG, JPEG, GIF, PNG, BMP, SVG, DXF, and WEBP 3D: STL, OBJ, AMF, 3MF, GLB, PLY |
| AImake Compatibility | Yes |
FAQs
When you buy from Koenig, you're buying local support and a real Australian team behind you long after the sale. Backed by decades of experience, we offer Australian-focused products, reliable local support, and continuous innovation. Our mission is to empower you with high-performance, dependable technology that drives productivity and creativity. That means local warranty backing, access to spare parts, a showroom where you can see the machine demonstrated in person and our Price Match Guarantee .
Our Campbellfield, Victoria warehouse is available for Click & Collect and Machine demonstrations. If you'd like to see a machine running in person, simply book a demonstration with our team first.
You'll be supported by Koenig's in-house technicians, based locally in Victoria. Call, and you'll speak directly to someone who can help.
5W is the optimal balance for desktop size, cost, and high-precision engraving.
UV lasers have a short wavelength and high-energy photons, which directly break molecular bonds with very little heat. This “cold processing” delivers much higher energy density and precision than traditional heat-based lasers.
That’s why 5W is considered the golden power level for desktop UV systems. Even for demanding tasks like 3D engraving inside glass, the F2 Ultra UV typically uses only around 60% of its power—leaving plenty of performance headroom.
Rotary: RA3 / RA2 Pro
Automation: Auto Streamline™ Conveyor, Pedal/Button Switch
Safety & Purification: Fire Safety Set, Safetypro™ AP2 Purifier, Safetypro™ IF2 Inline Fan
Absolutely not. Please note that F2 Ultra UV and F2 Ultra are not the same machine. They use different light sources and different interfaces, so their field lenses are not interchangeable.
The key difference:
They are two machines with completely different “engines.” They share the “F2 Ultra” flagship series name—indicating they are both high-end galvanometer systems—but they are designed for entirely different materials and applications.
