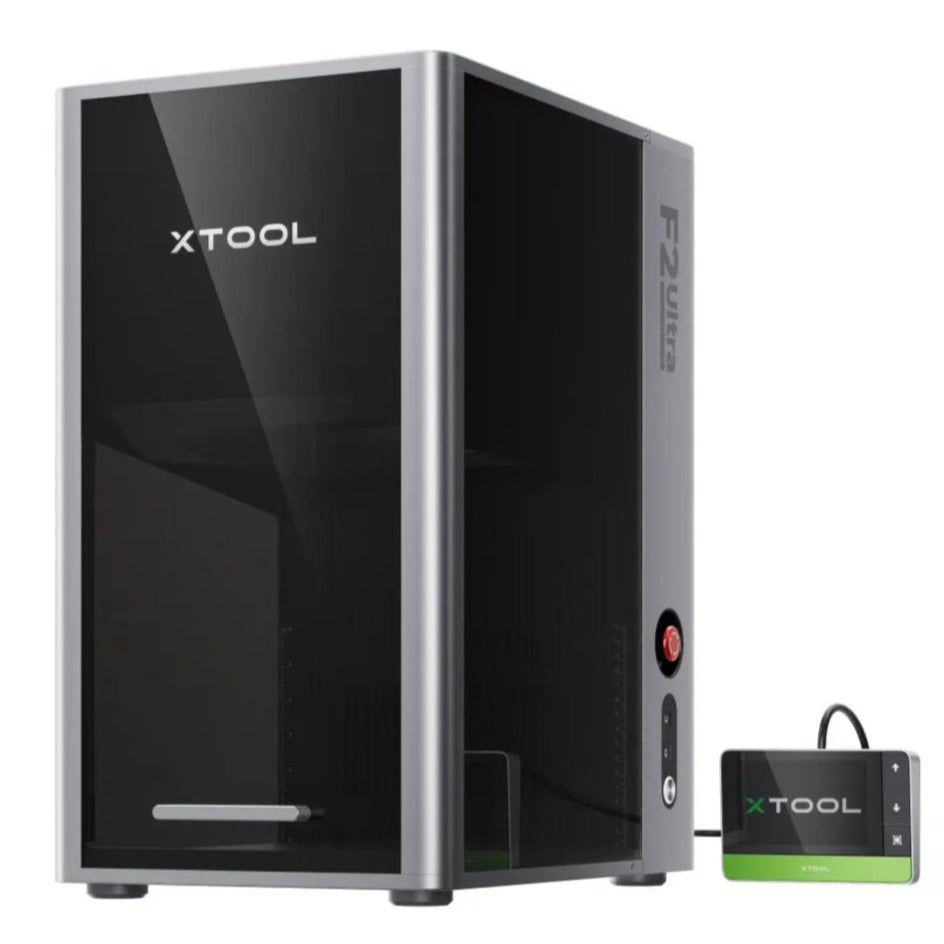

xTool F2 Ultra: 60W MOPA & 40W Diode Dual Laser Engraver

SKU: P1010157
$11,279.00 $11,277.20 SAVE $1.80
  • Vibrant Color Marking: 60W MOPA unlocks 100+ consistent colors on metals.
  • 48MP Dual Cameras: Precise alignment and fine detail, even on tiny items.

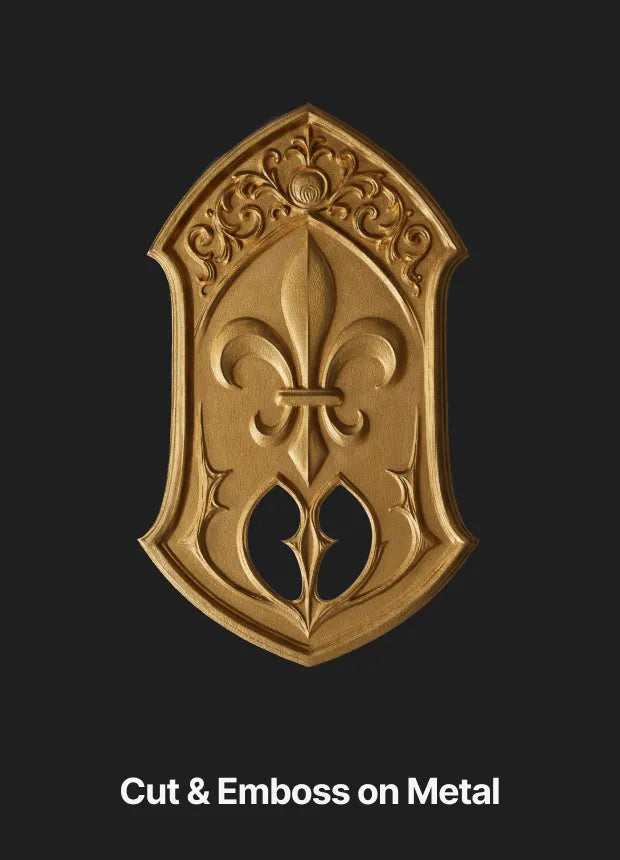

  • All-Metal Capability: Color engraving, emboss, and cut brass, stainless steel, and more.

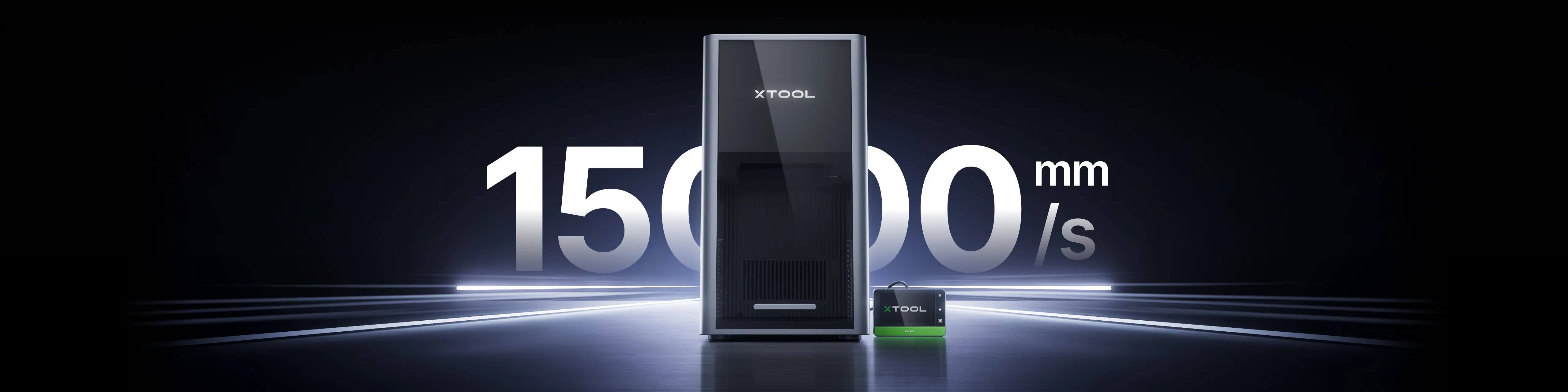

  • Efficient Batch Engraving: 8.6"×8.6" area & 15,000mm/s speed for pro-level output.

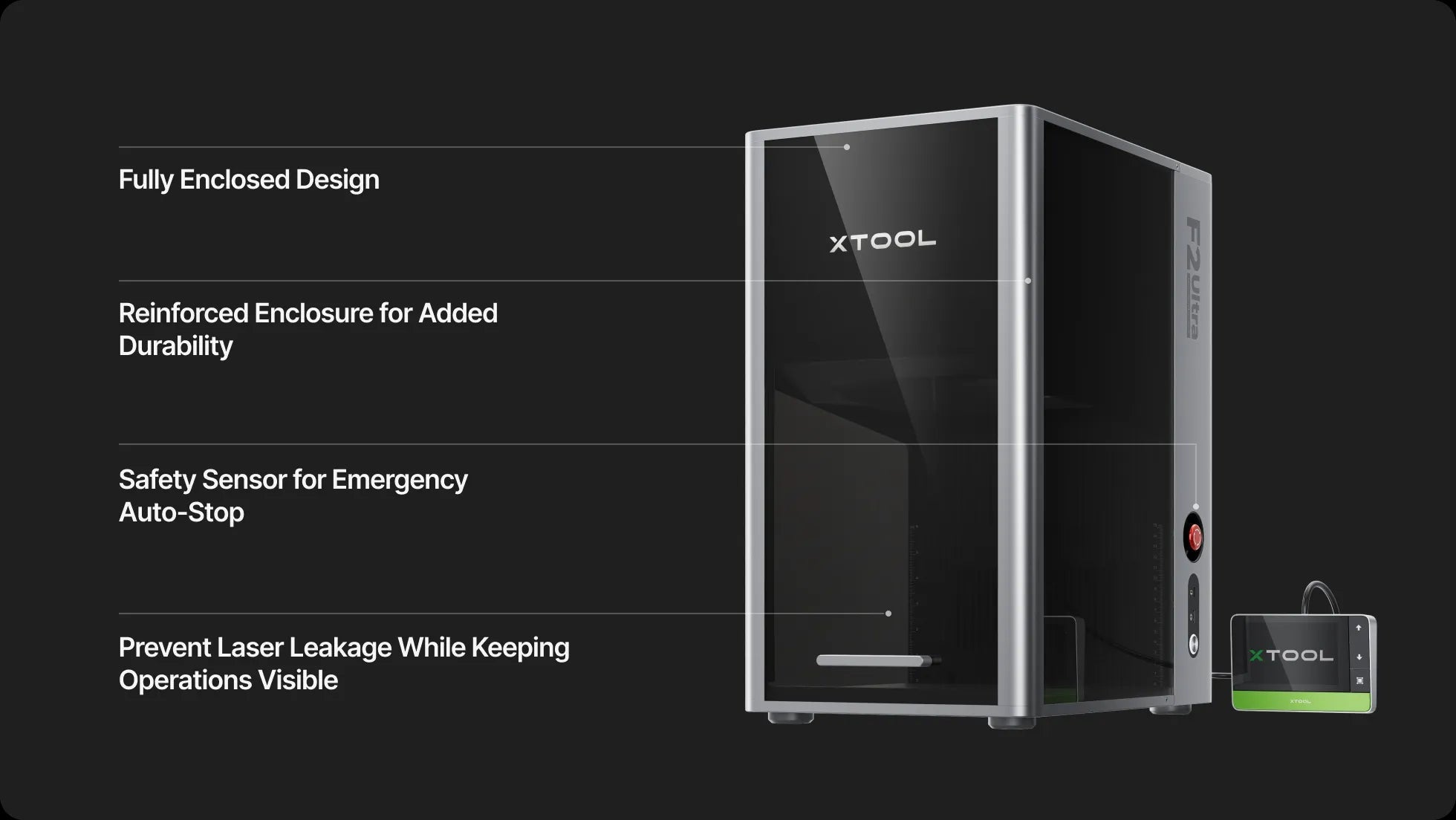

  • Safety-Assured: Enclosed cover. Eye-protection cover. Fire safety stop.

In Stock

Package

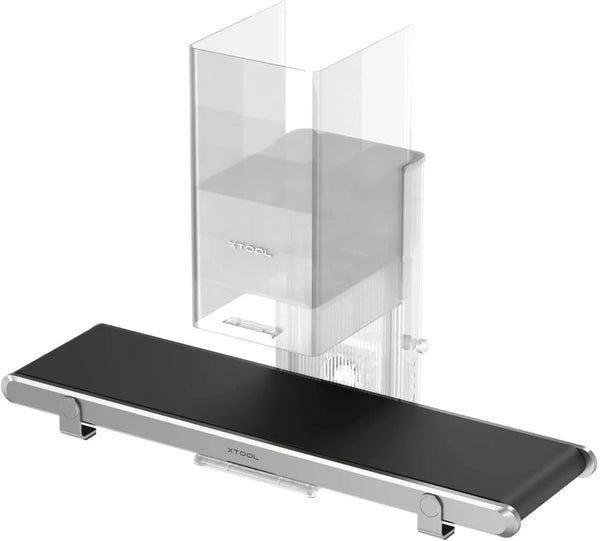

xTool F1 Ultra: Conveyor FeederxTool F1 Ultra: Conveyor Feeder
xTool F1 Ultra: Conveyor Feeder
xTool F2 Ultra: Deluxe BundlexTool F2 Ultra: Deluxe Bundle
xTool F2 Ultra: Deluxe Bundle

Subtotal: $11,277.20

Add to Wishlist
Price Match Guarantee. If you find the same stocked item, we will match it + Local Aus Support.

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

⚡ Get 10% Off Laser Materials… Forever!⚡

Automatically applied to your account with every Koenig Machine purchase. Explore our material range

Pairs well with

xTool F2 Ultra Compatible Materials & Applications

The xTool F2 Ultra combines a 60W MOPA Fiber Laser with a 40W Blue Diode Laser, allowing users to process metals, engineering plastics and a wide range of creative materials from one compact desktop machine.

This dual laser configuration makes the F2 Ultra ideal for industrial marking, jewellery engraving, signage, customisation, product branding, maker workflows and creative applications.

60W MOPA Fiber Laser Applications

The 60W MOPA fiber laser is designed for high-speed, high-contrast marking on metals and selected engineering plastics.

MOPA technology provides greater pulse control, making it suitable for:

• Metal engraving & marking
• Stainless steel colour marking
• Serial number marking
• QR codes & barcodes
• Industrial part identification
• Compliance plates
• Jewellery engraving
• Product branding & logos
• Permanent traceability marking
• Engineering plastic marking

Metals Suitable for the 60W MOPA Fiber Laser

• Stainless Steel
• Mild Steel / Carbon Steel
• Titanium
• Anodised Aluminium
• Raw Aluminium
• Brass
• Copper
• Silver
• Gold
• Platinum
• Nickel & Nickel-Plated Metals
• Painted, Powder Coated & Coated Metals

These materials typically produce strong contrast, sharp detail and highly permanent marks.

Reflective materials such as copper, gold, silver and polished aluminium may require parameter optimisation for best results.

Precious Metals & Jewellery Applications

The xTool F2 Ultra 60W MOPA fiber laser is well suited to jewellery engraving and precious metal marking applications, including:

• Gold
• Silver
• Platinum
• Stainless Steel Jewellery
• Titanium Jewellery

Due to the reflective nature and high thermal conductivity of precious metals, these materials are generally best suited to fine detail engraving, branding, serialisation and surface marking rather than aggressive deep engraving.

The adjustable pulse control available with MOPA fiber technology allows for improved control over contrast, heat input and marking appearance, making it particularly effective for delicate jewellery work and detailed engravings.

Marking inside rings or curved jewellery surfaces requires additional consideration, as angled beam interaction may affect consistency and reflectivity. With correct fixturing, rotary positioning and parameter adjustment, excellent results can still be achieved.

Variations in marking appearance on highly reflective metals, especially on curved or internal ring surfaces, are considered normal material behaviour.

Engineering Plastics Compatible with Fiber Laser Marking

While fiber lasers are optimised primarily for metal, many engineering plastics also respond well — particularly darker plastics or materials designed for industrial laser marking applications.

Plastics That Mark Well

• ABS
• Polycarbonate (PC)
• Nylon (PA)
• PBT
• HIPS
• 2-Ply / Traffolyte Materials

These materials are commonly found in:

• Electrical housings
• Connector bodies
• Automotive components
• Industrial enclosures
• Consumer product casings
• Switchboards & labels

Plastics That May Require Additives

• Polyethylene (PE)
• Polypropylene (PP)

Black and darker coloured plastics generally respond better due to improved laser absorption.

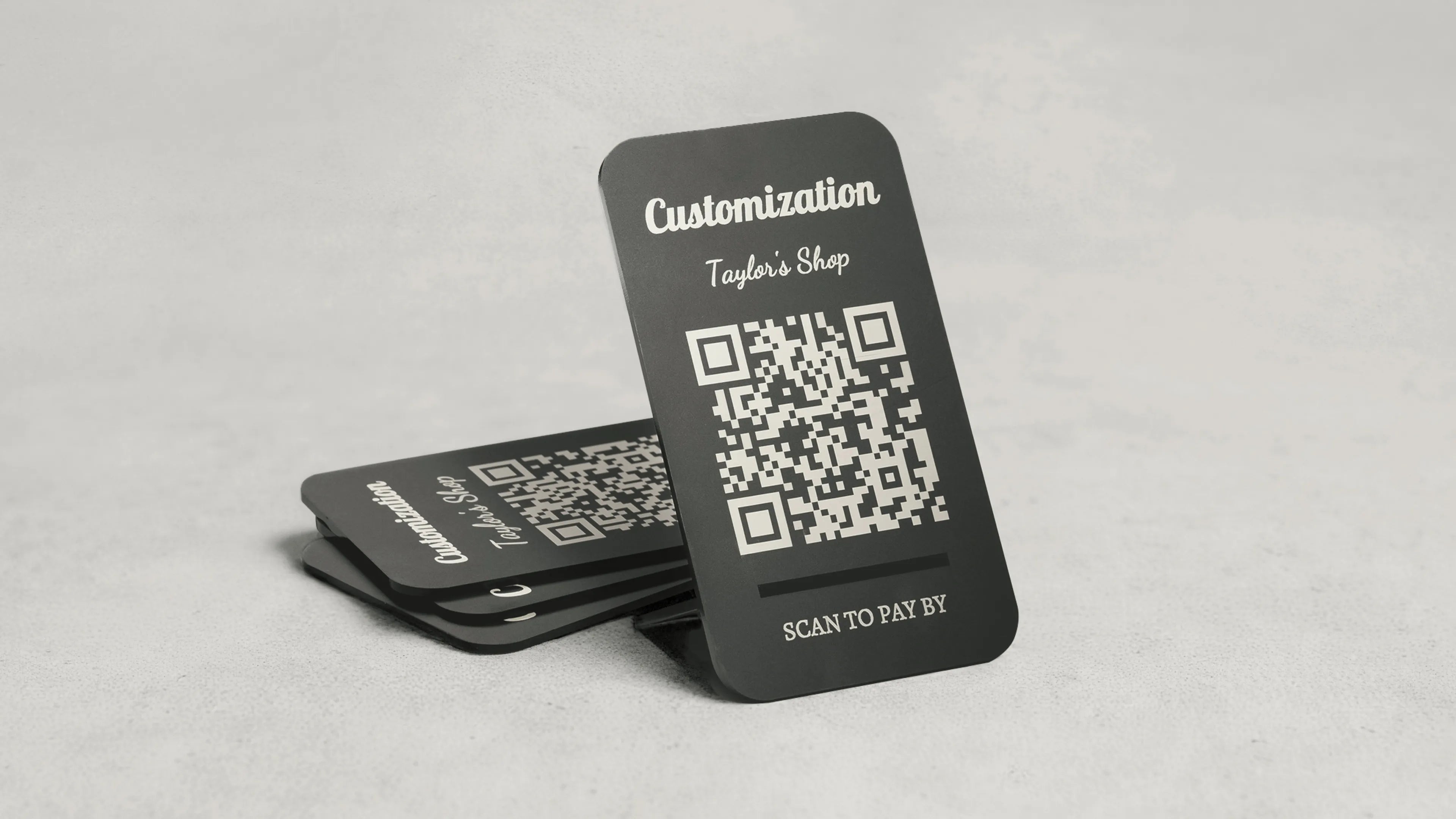

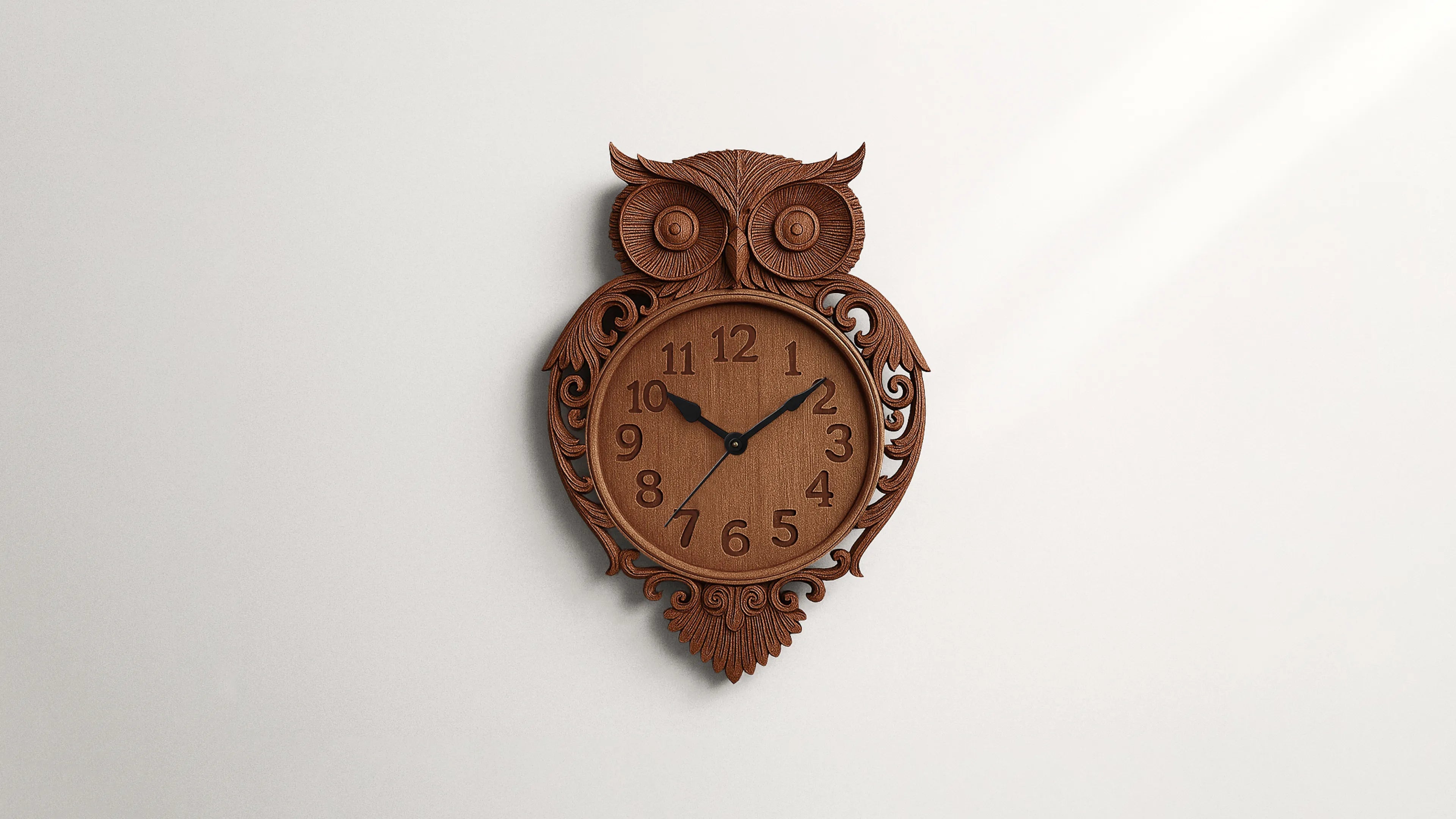

40W Blue Diode Laser Applications

The integrated 40W blue diode laser expands the machine’s compatibility beyond metal marking, making the F2 Ultra ideal for creators, makers, signage businesses, educators and personalisation workflows.

Materials Suitable for Blue Diode Laser Processing

• Wood & Plywood
• Bamboo
• Leather
• Paper & Cardboard
• Dark Acrylic
• Rubber
• Slate & Stone
• Painted Surfaces
• Coated Materials
• Promotional Products
• Packaging & Gift Items

The blue diode laser is ideal for engraving organic materials, custom products, signage items, craft products and creative applications.

Surface Finishes That Produce Excellent Contrast

• Painted Surfaces
• Powder Coated Metals
• Anodised Finishes
• Oxide-Coated Metals
• Coated Metals & Plastics

In these applications, the laser removes the top coating layer to expose the base material underneath, producing strong visual contrast and highly durable markings.

Materials Not Recommended

• PVC — not recommended due to harmful gas release during processing
• Standard clear acrylic / PMMA — generally better suited to CO2 laser systems
• Unknown reflective materials — testing recommended before production use

General Laser Marking Notes

• Matte or brushed finishes typically produce stronger contrast than mirror-polished surfaces
• Material composition and alloy variations influence marking results
• Engineering plastics respond differently depending on fillers and additives
• MOPA settings provide greater control over heat input, contrast and colour marking capability
• Results vary depending on artwork detail, speed, frequency and power settings
• Material testing is recommended where engraving depth or visual appearance is critical

Cutting Notes

Thin metal may be cut using the 60W fiber system with multiple passes, however the F2 Ultra is primarily designed for marking and engraving applications rather than production metal cutting.

For regular sheet metal cutting or thicker material processing, a dedicated fiber cutting machine is recommended.

Need Help Choosing the Right Setup?

Selecting the right laser machine is about more than power. It is about understanding your materials, workflow, finish expectations and production requirements.

If you are unsure how your material will respond, or would like guidance on machine setup, sample testing or application suitability, our team is here to help.

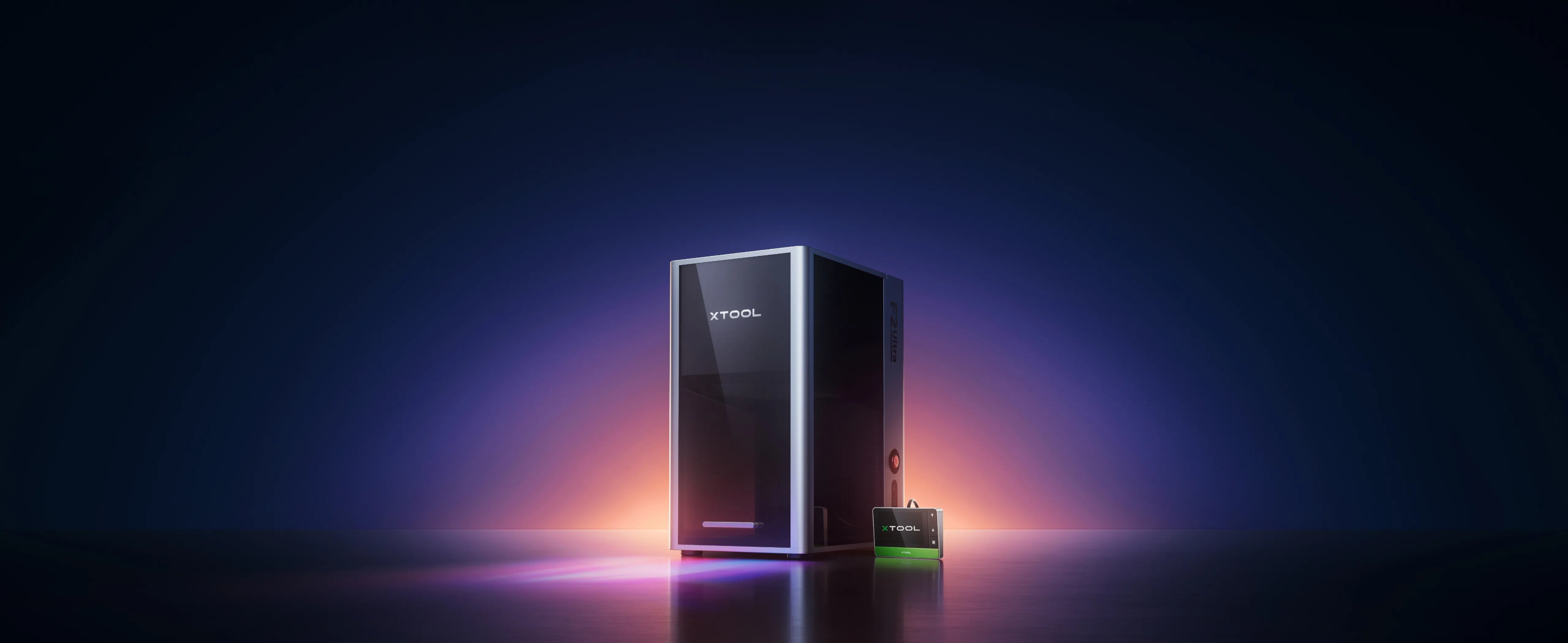

xTool F2 Ultra

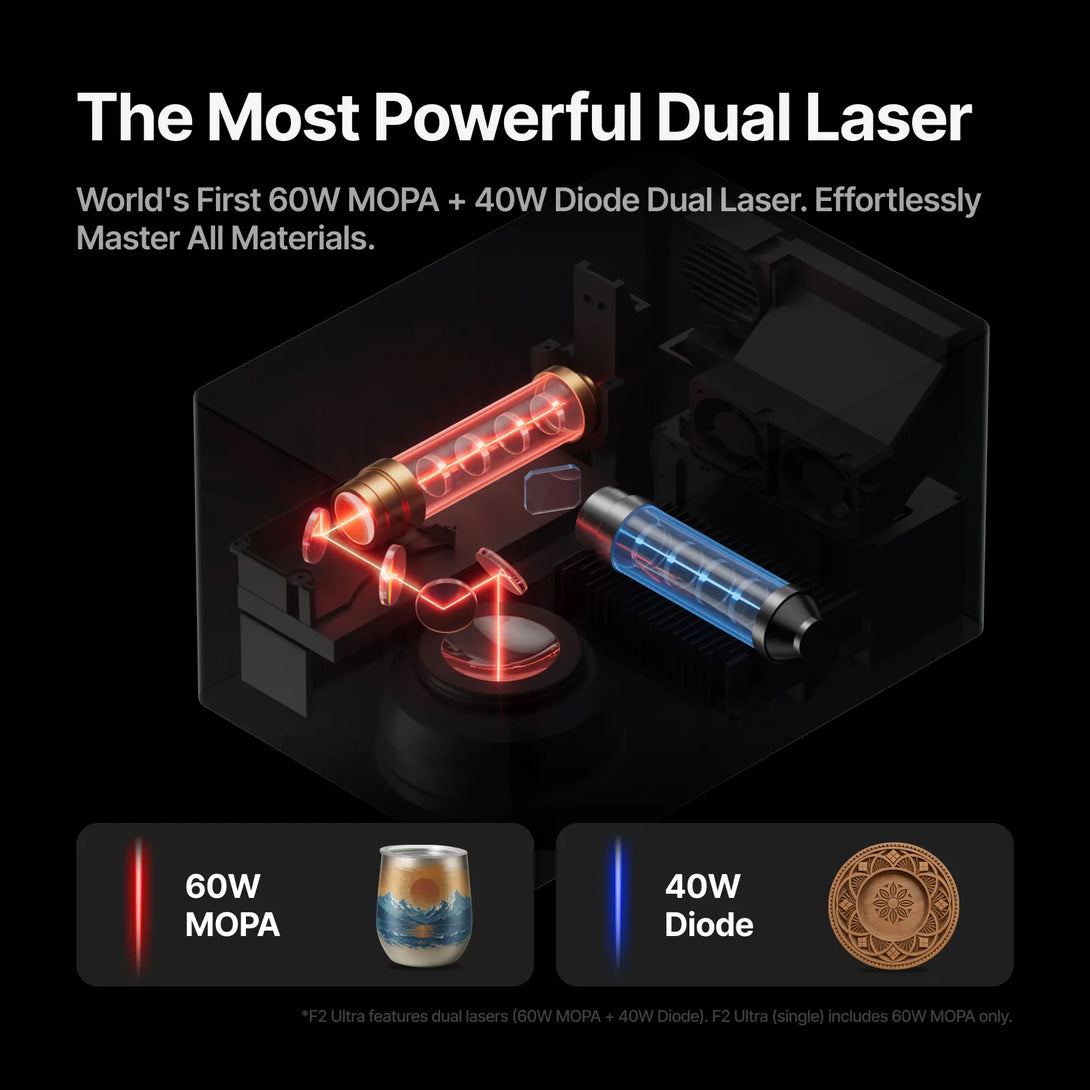

The First 60W MOPA + 40W Diode Dual Laser with AI

The Most Powerful Dual Laser

World's First 60W MOPA + 40W Diode

The First AI-powered MOPA Laser

60w Mopa
40W Diode

Color Engraving Becomes More Accurate and Easier

With our advanced 60W MOPA laser, you can achieve richer tones, finer gradients, and even holographic effects on metal. What truly sets xTool apart is our precisely calibrated structure and premium optical system—engineered to minimize variation and maximize consistency.

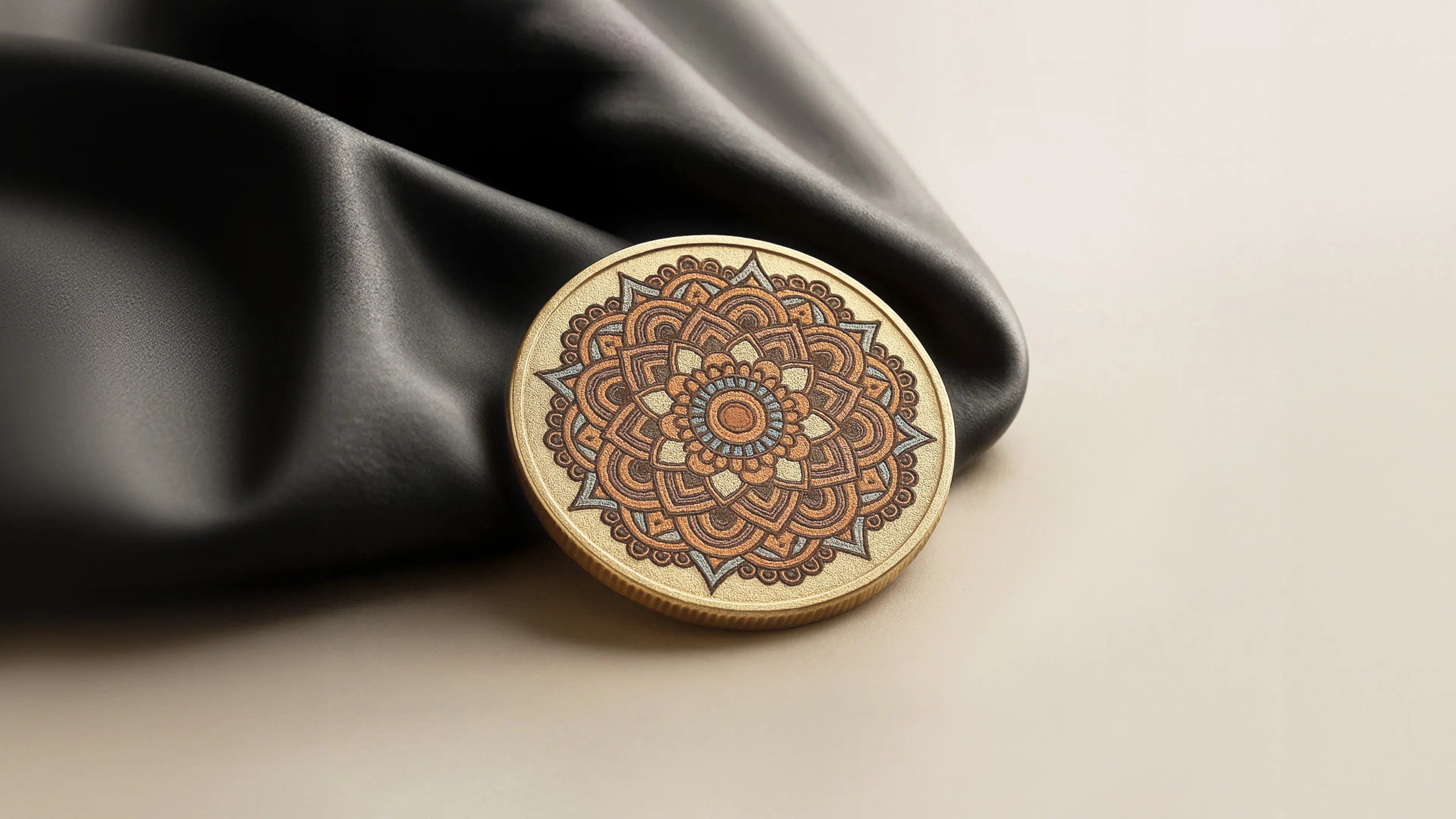

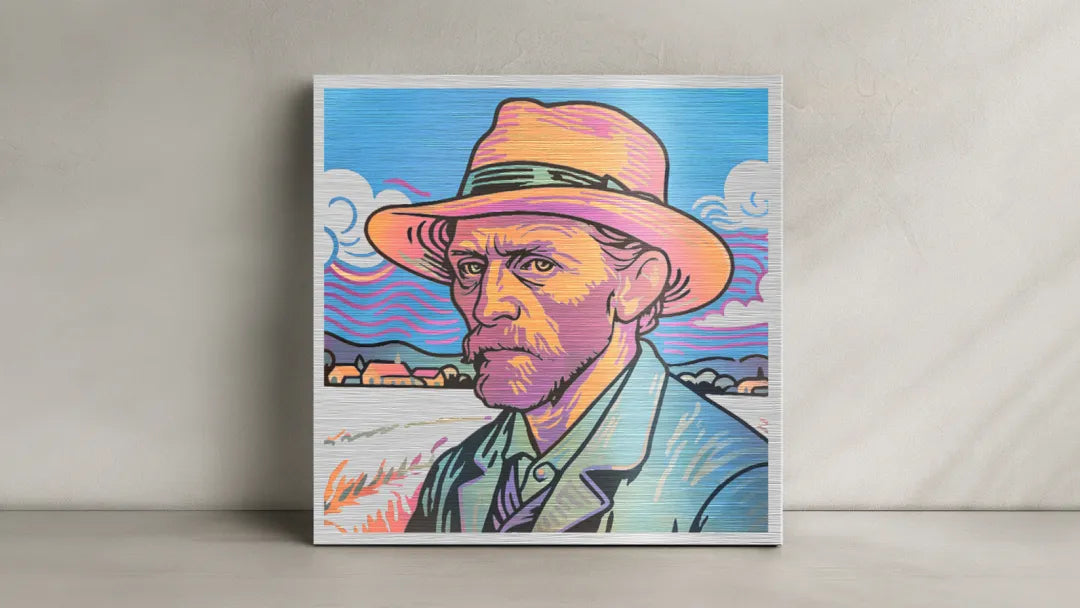

100+ Vibrant Colors, Remarkably Consistent

Delivers over 100 consistent colors on stainless steel and titanium, spanning 7 color spectrums and taking your designs far beyond black and white.

Color Engraving Becomes More Accurate and Easier

With our advanced 60W MOPA laser, you can achieve richer tones, finer gradients, and even holographic effects on metal. What truly sets xTool apart is our precisely calibrated structure and premium optical system—engineered to minimize variation and maximize consistency.

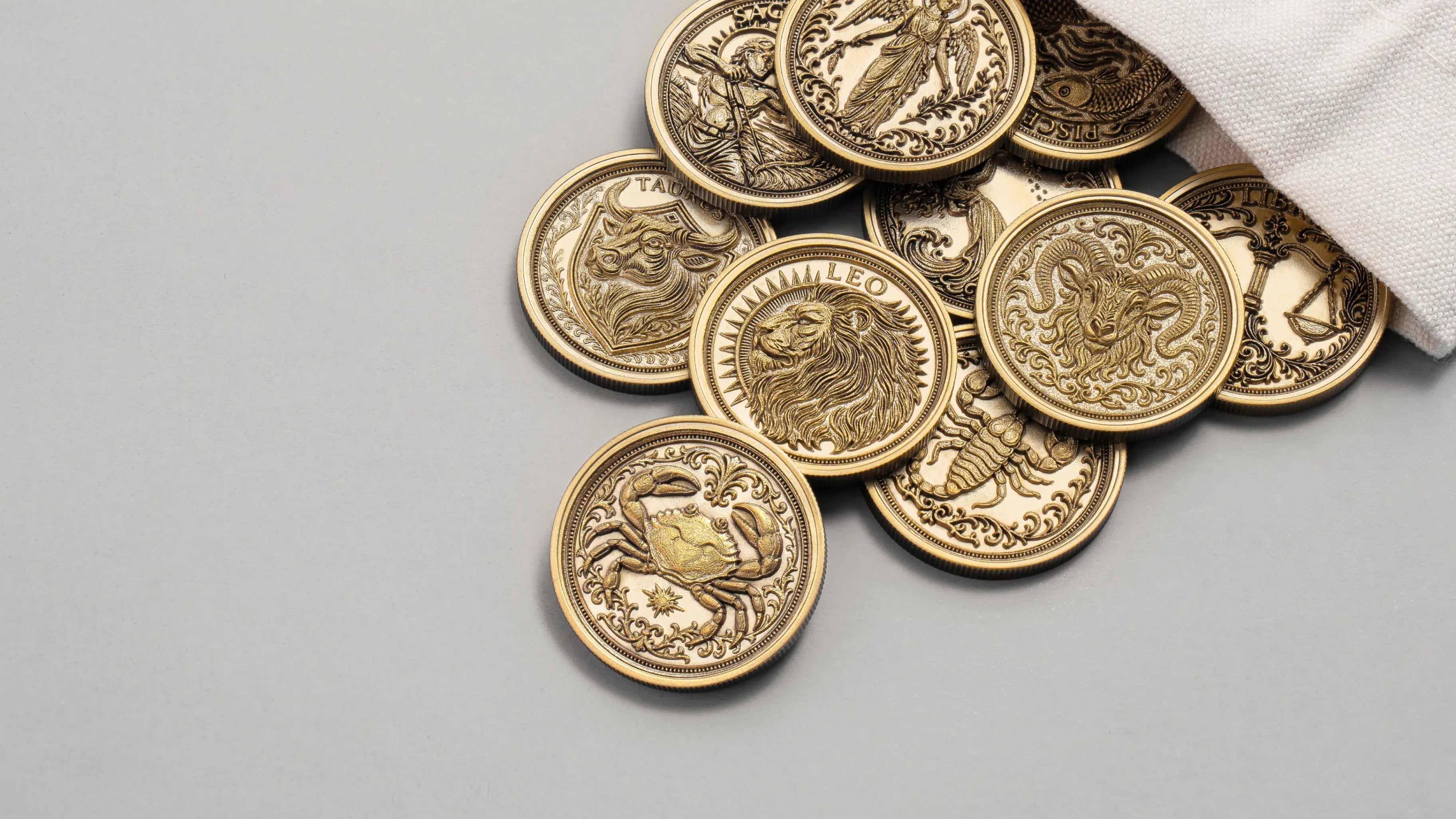

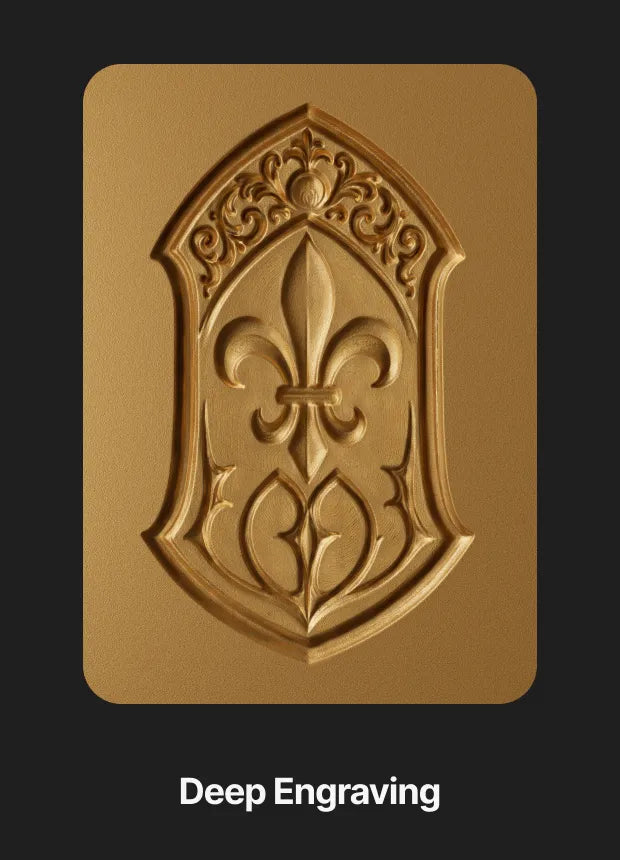

Deep Engraving Done Faster

60W MOPA cuts metal faster and deeper, creating crisp textures and layered reliefs that lower-power lasers can’t match. Adjustable pulse width and frequency give you precise control to reveal the finest details in every design.

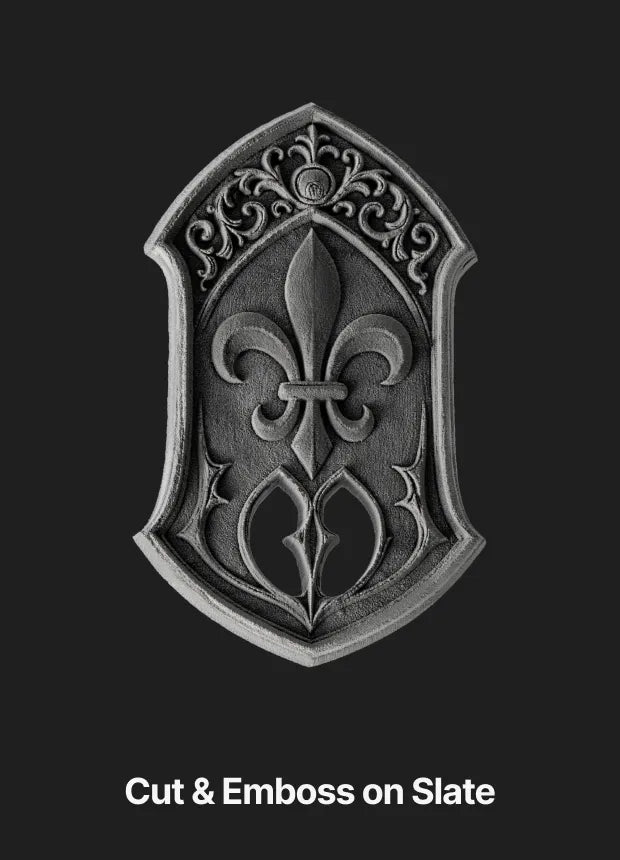

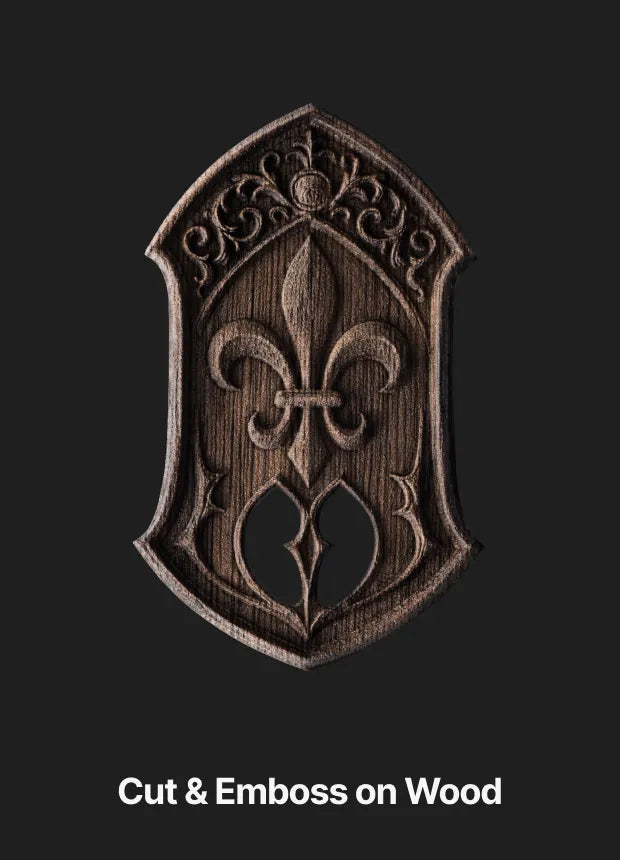

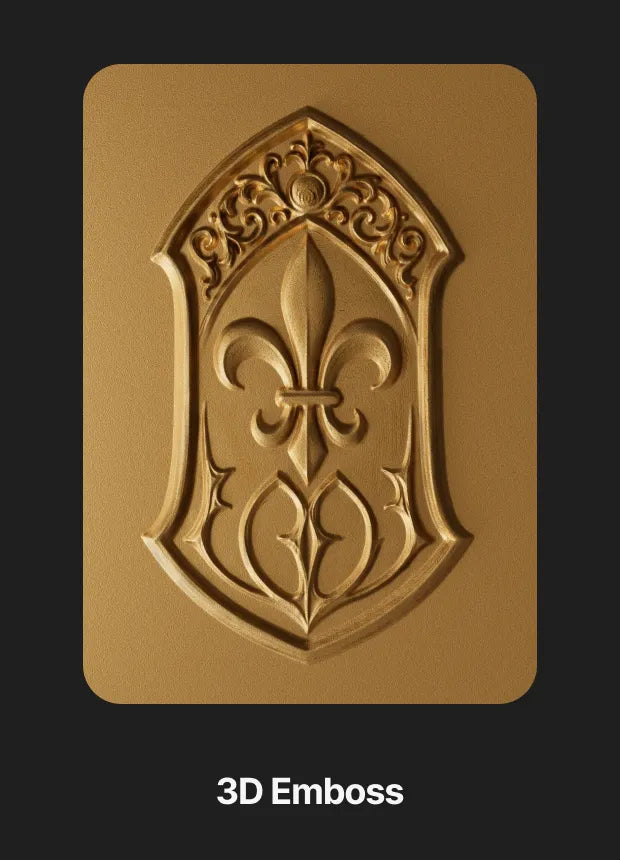

From 2D to 3D, Made for Every Masterpiece

Effortlessly Cutting Through Thicker Materials

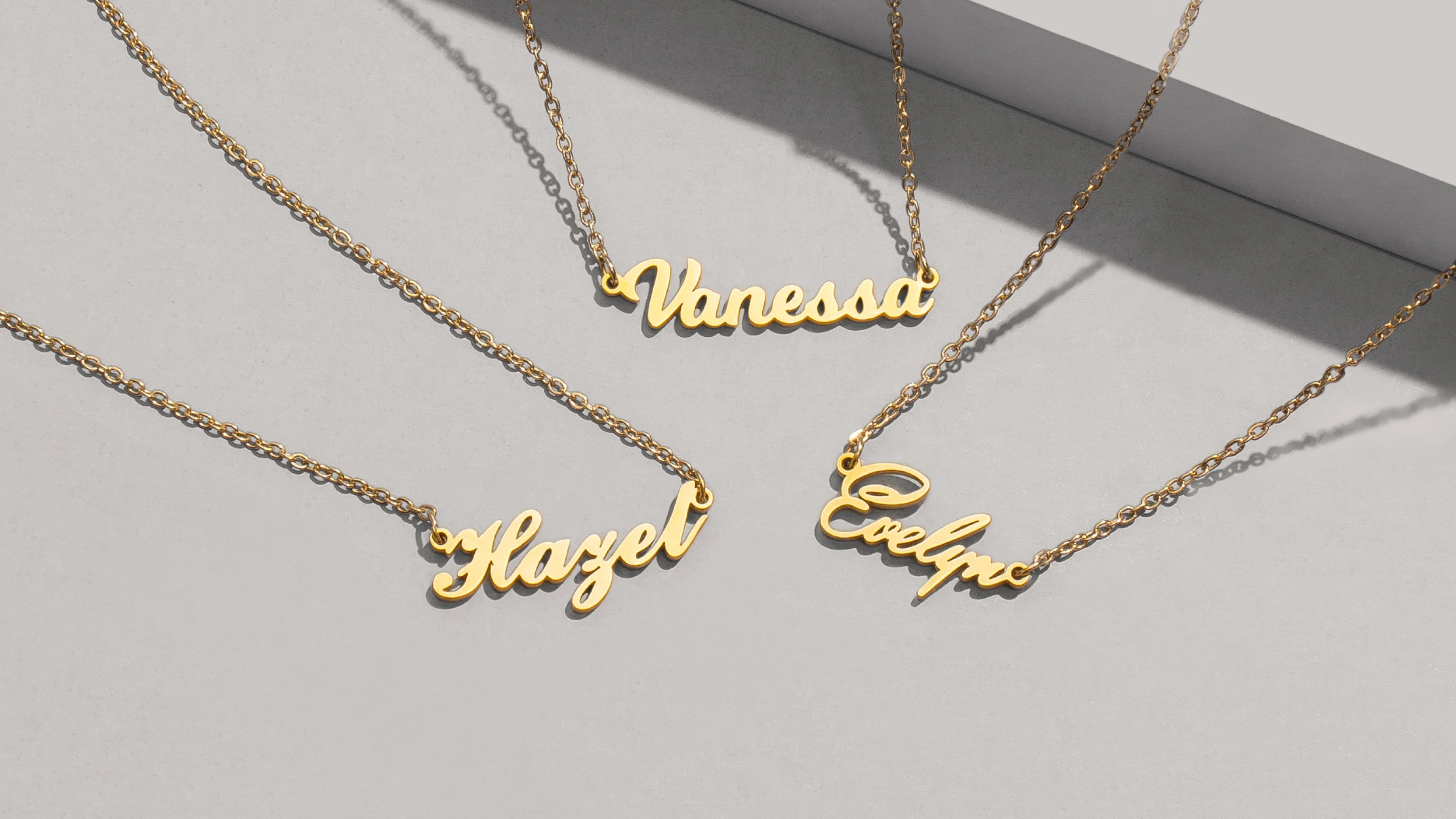

2mm Metal

The 60W MOPA laser enables cutting metals up to 5 times thicker than a 20W fiber laser.

2mm Metal

The 60W MOPA laser enables cutting metals up to 5 times thicker than a 20W fiber laser.

2mm Metal

The 60W MOPA laser enables cutting metals up to 5 times thicker than a 20W fiber laser.

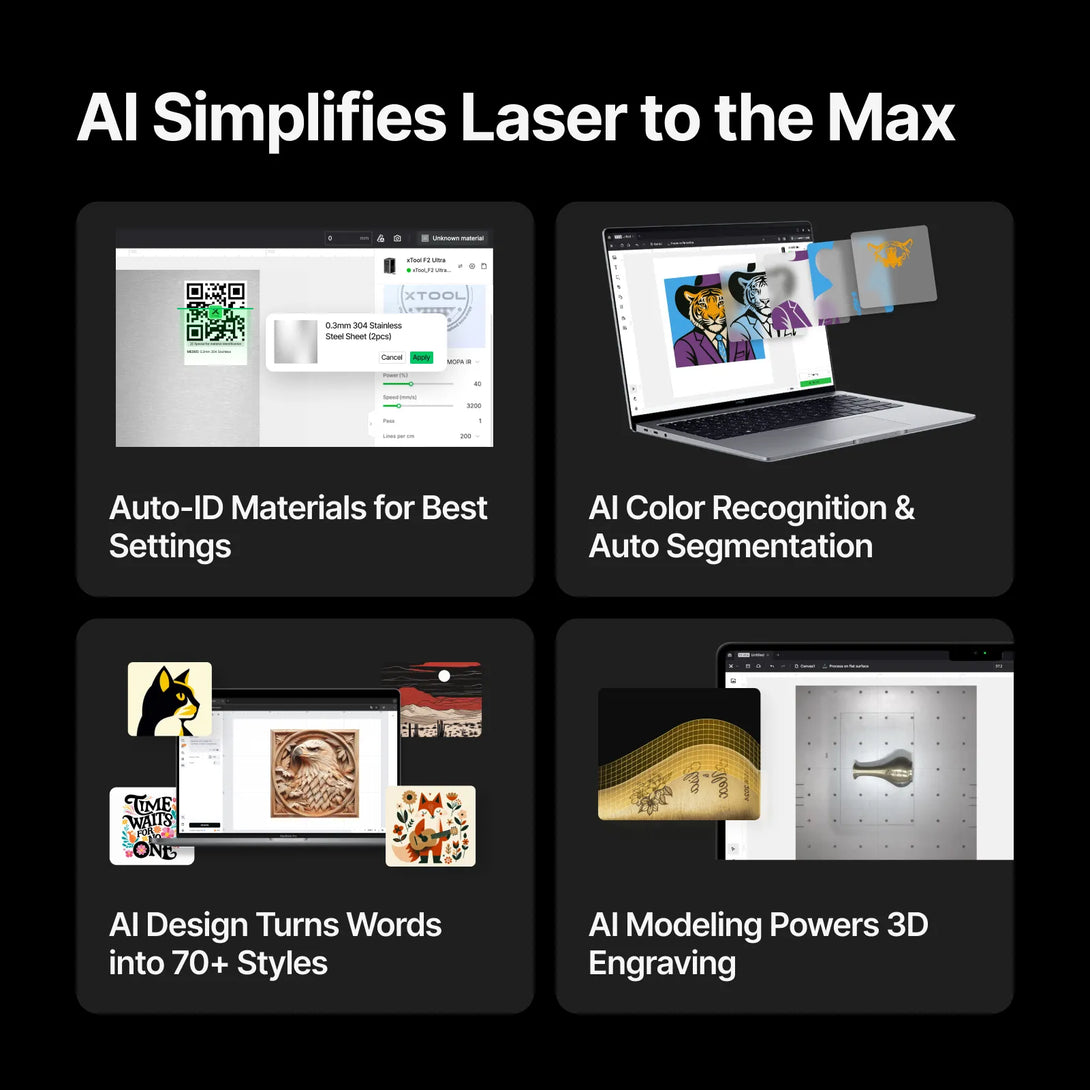

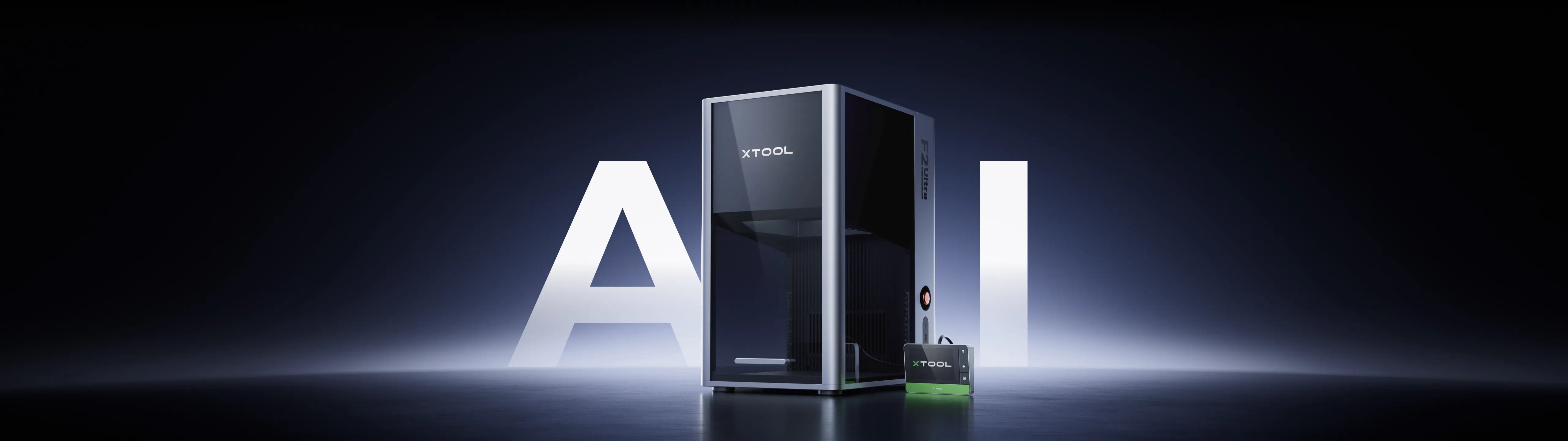

AI Simplifies Laser to the Max

AI Drives the Entire Process with One Click

From material detection to settings and preview, it simplifies every step for you.

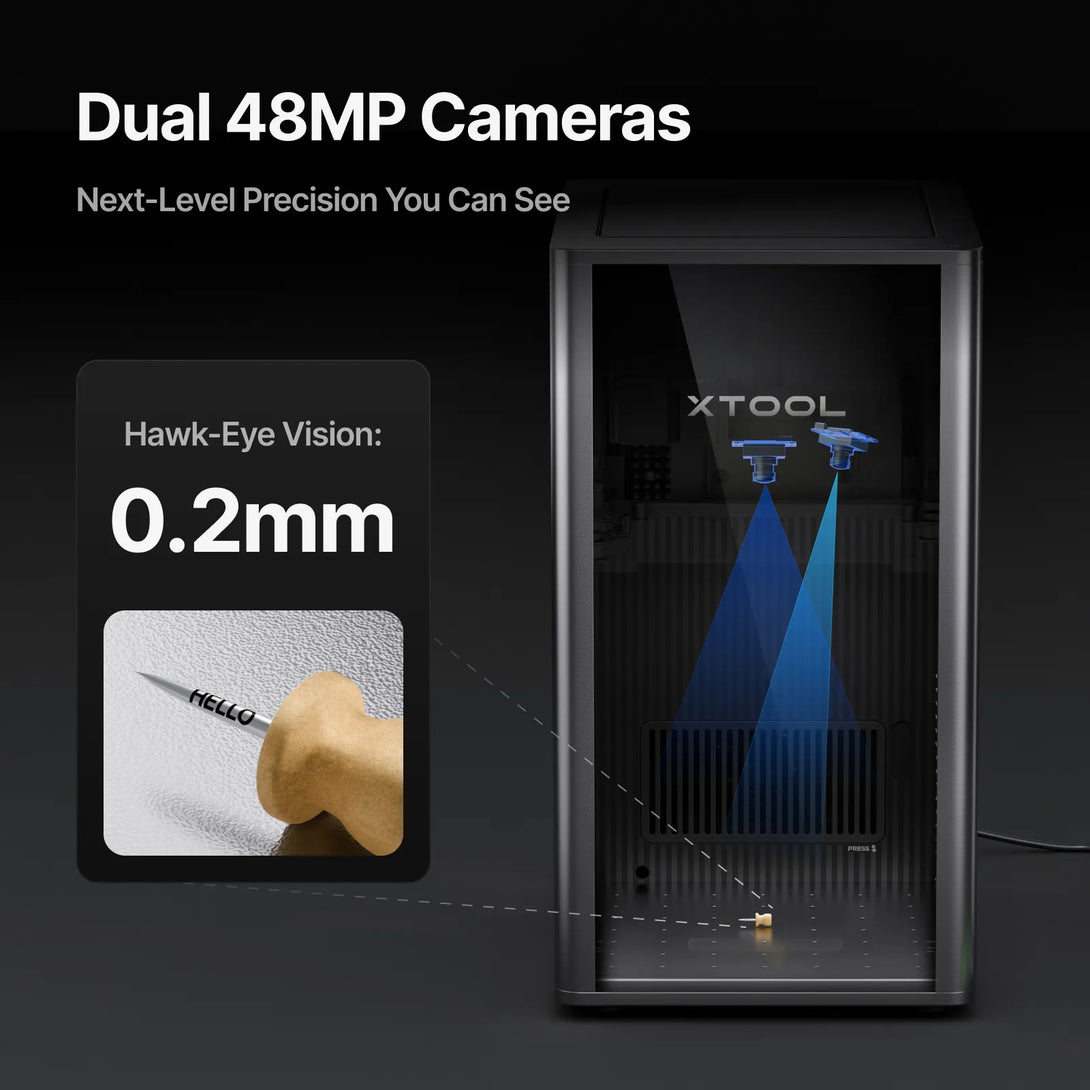

Dual AI Cameras with Hawk-Eye Vision, Boosting Precision by 60%

Two 48MP cameras in F2 Ultra boost accuracy to 0.2mm—60% improvement over single-camera systems.

AI Powers Every Step You Take

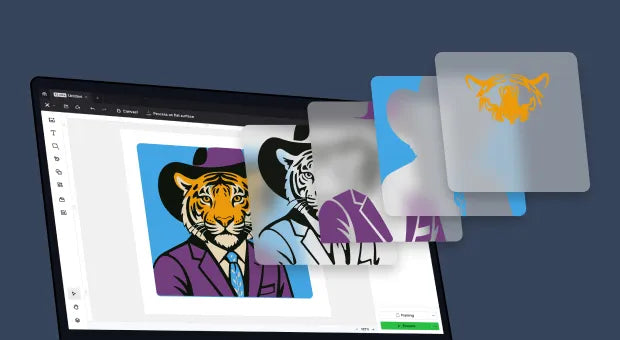

AI Colour Recognition

Upload an image, and AI will automatically segment the colours, allowing you to quickly set parameters for each one.

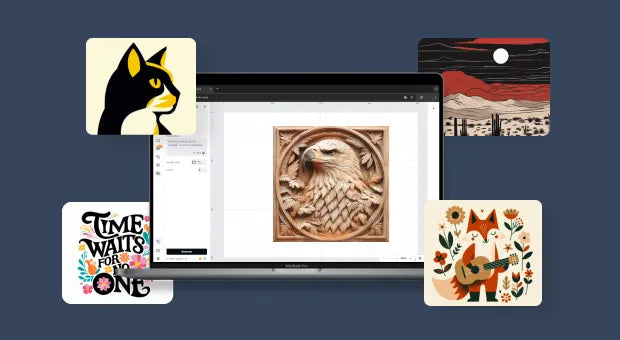

AI Design

AI image generation helps transform your words in 70+ styles within minutes, making every project truly unique.

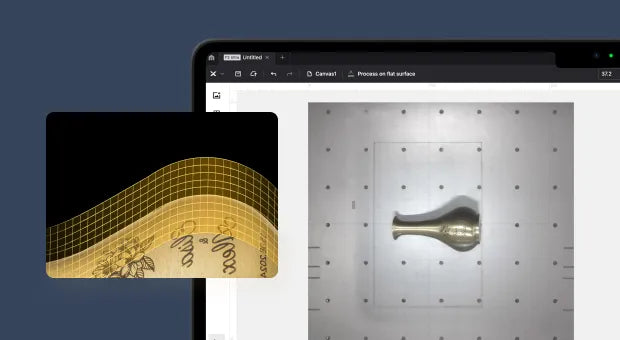

AI Modeling

Smart 3D modeling lets you engrave objects of any shape or size easily and accurately.

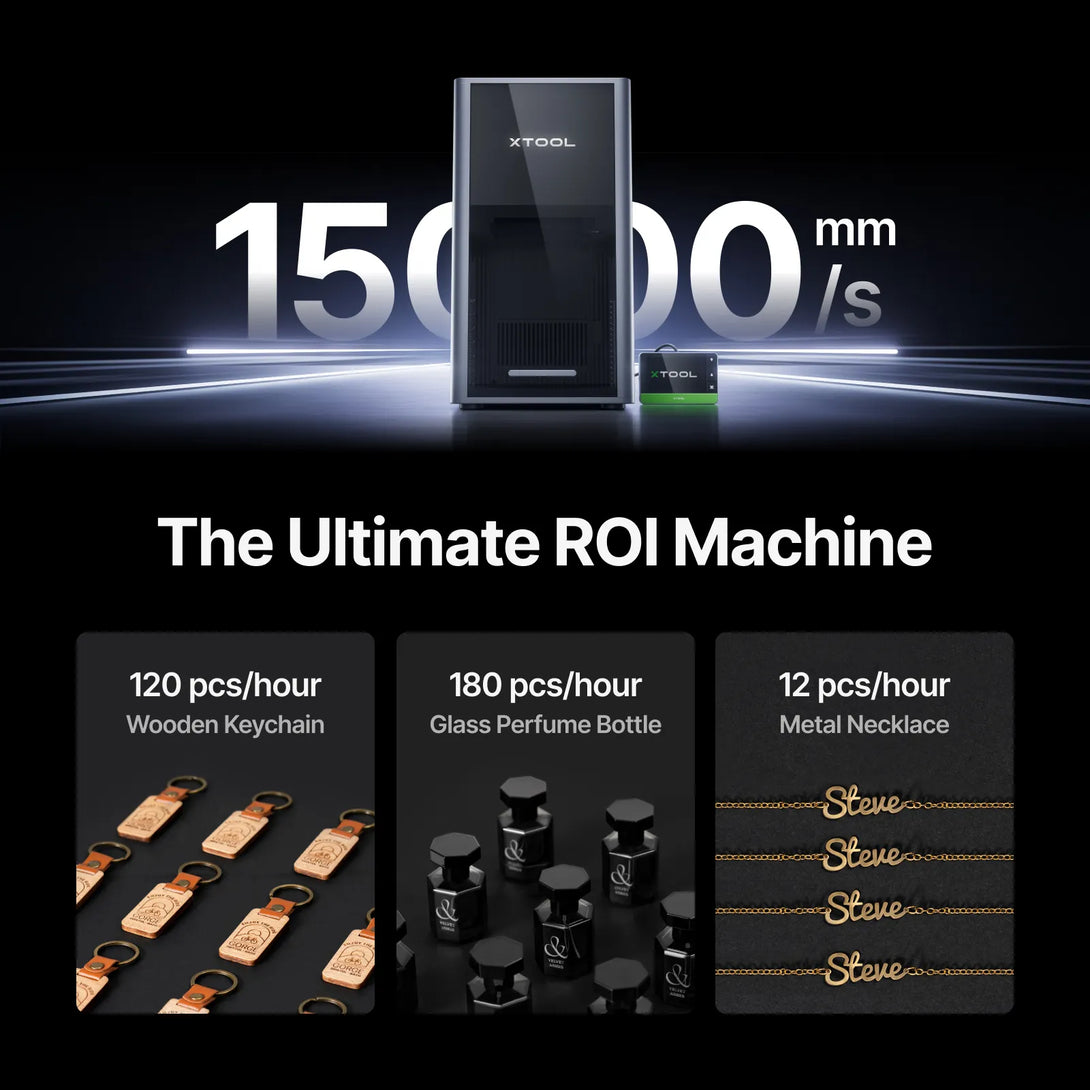

The Ultimate ROI Machine

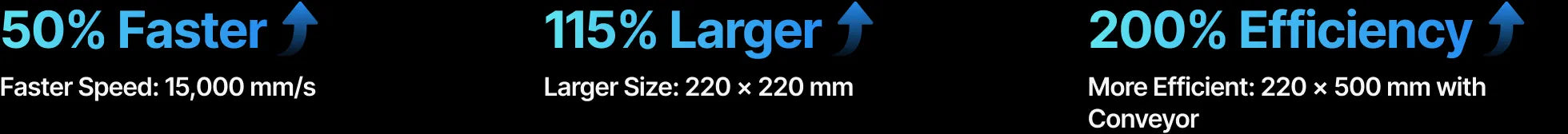

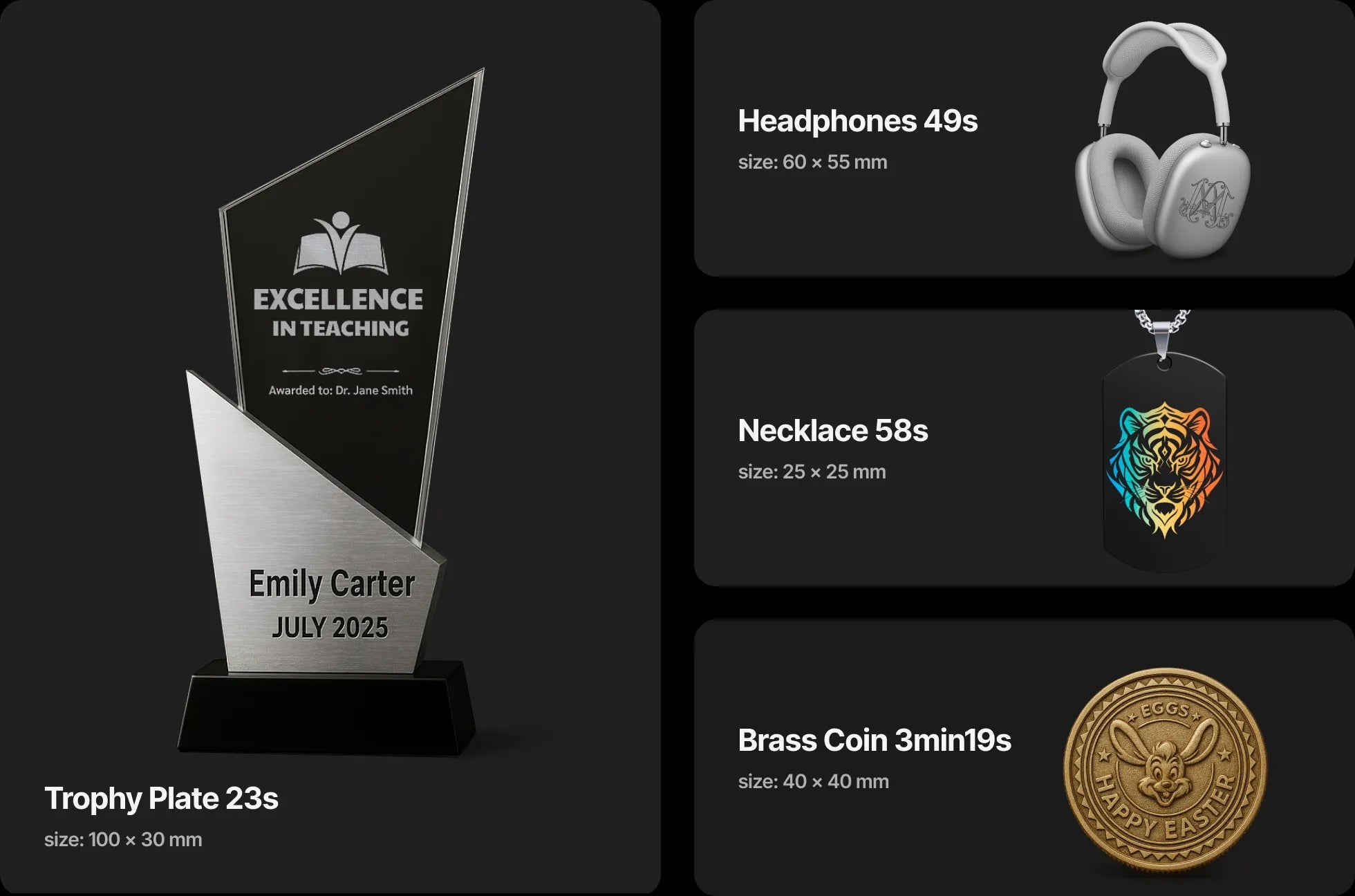

Faster, Create More in Less Time

Larger, Unlock Bigger Project Possibilities

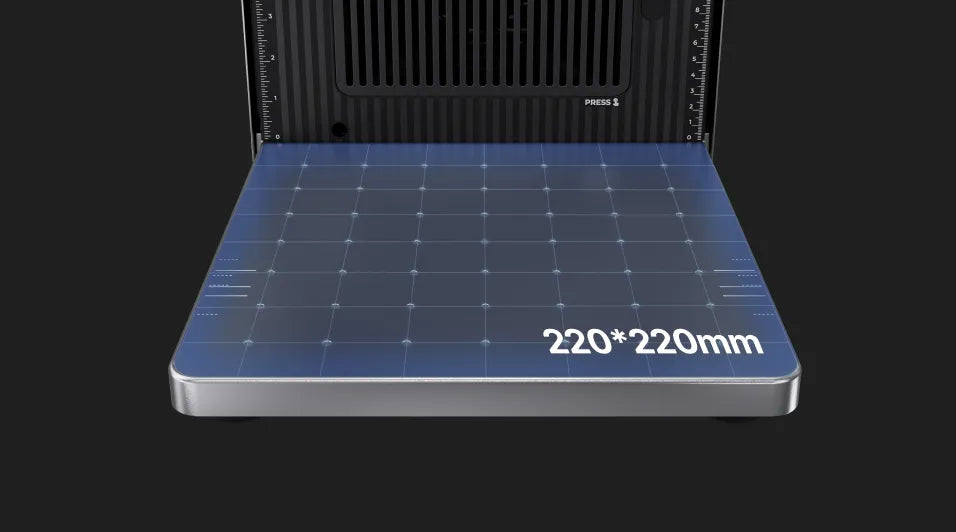

Up to 220 × 220 mm work area, ideal for one-off projects and detailed pieces.

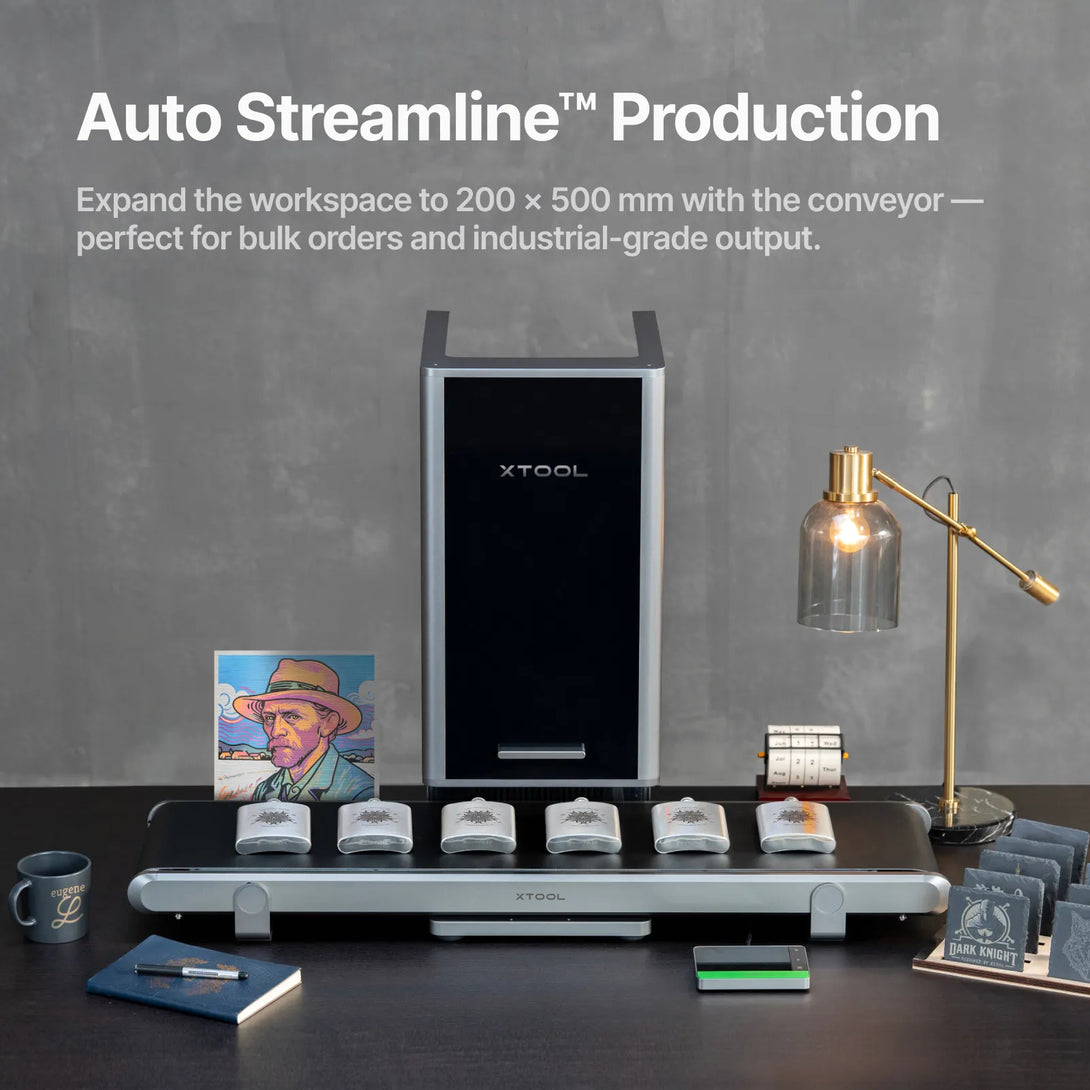

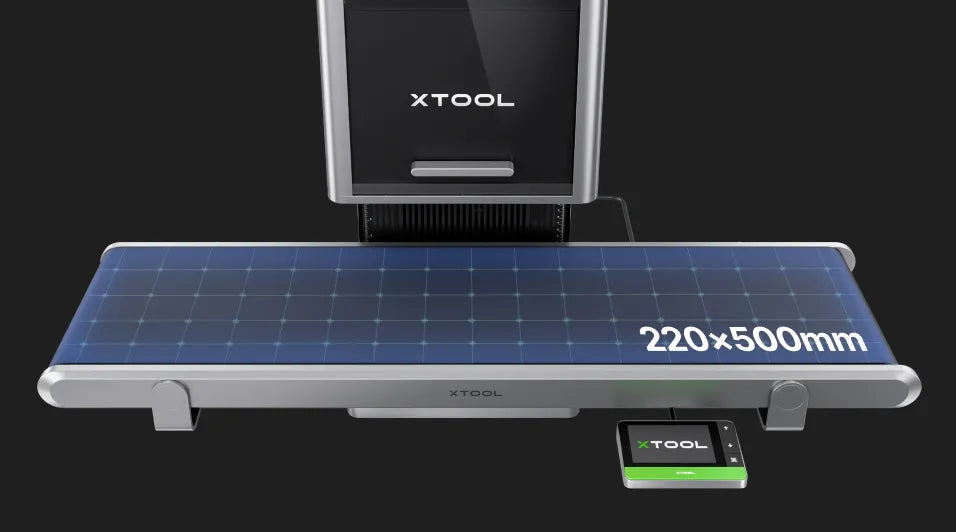

With the conveyor, the bed size expands to 220 × 500 mm, perfect for handling urgent bulk orders on your own.

Smarter, Batch Process for Industrial-Grade Output

From layout to batch positioning, F2 Ultra streamlines your workflow with smart fill — so you're always ready for bulk orders.

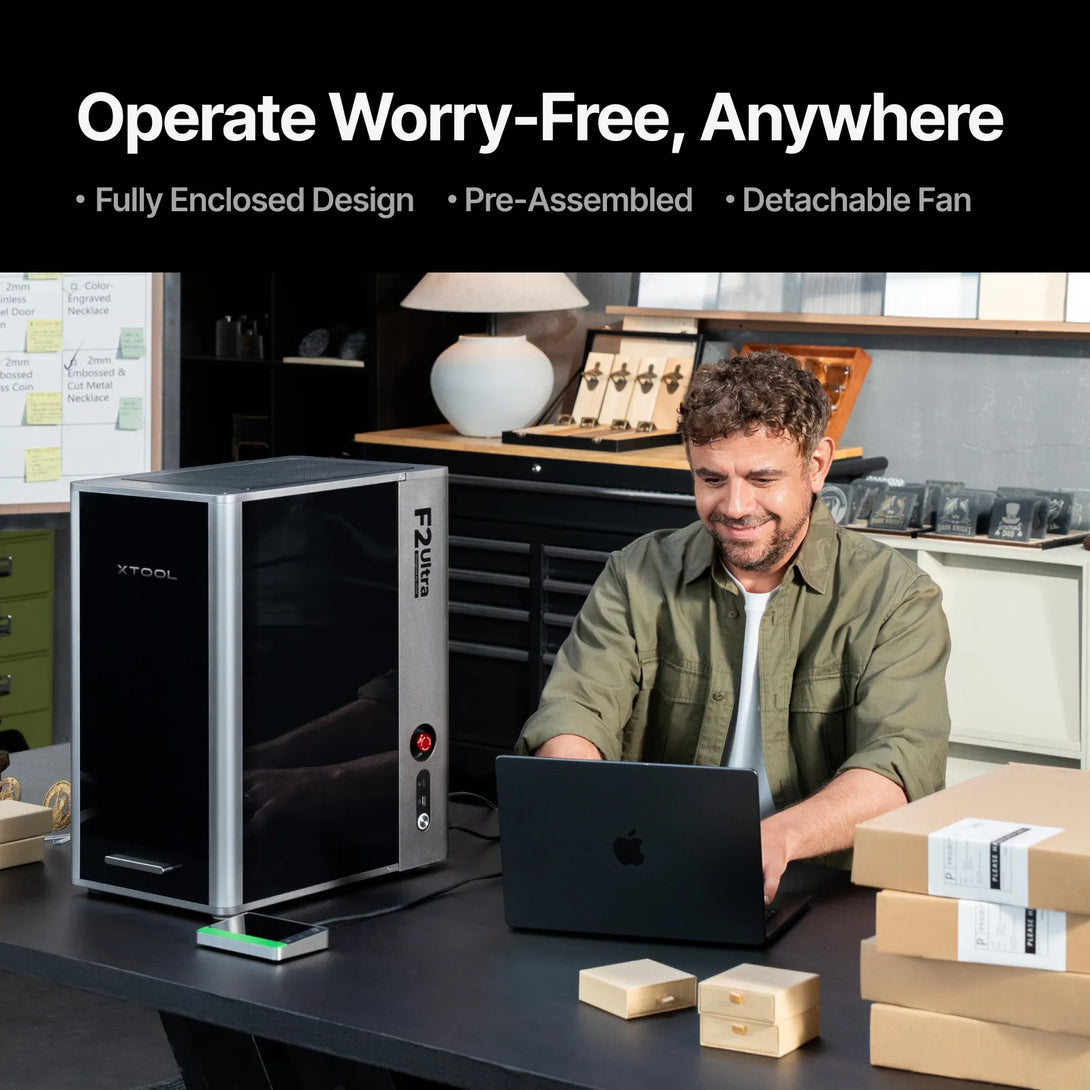

Always Safe and Easy to Maintenance

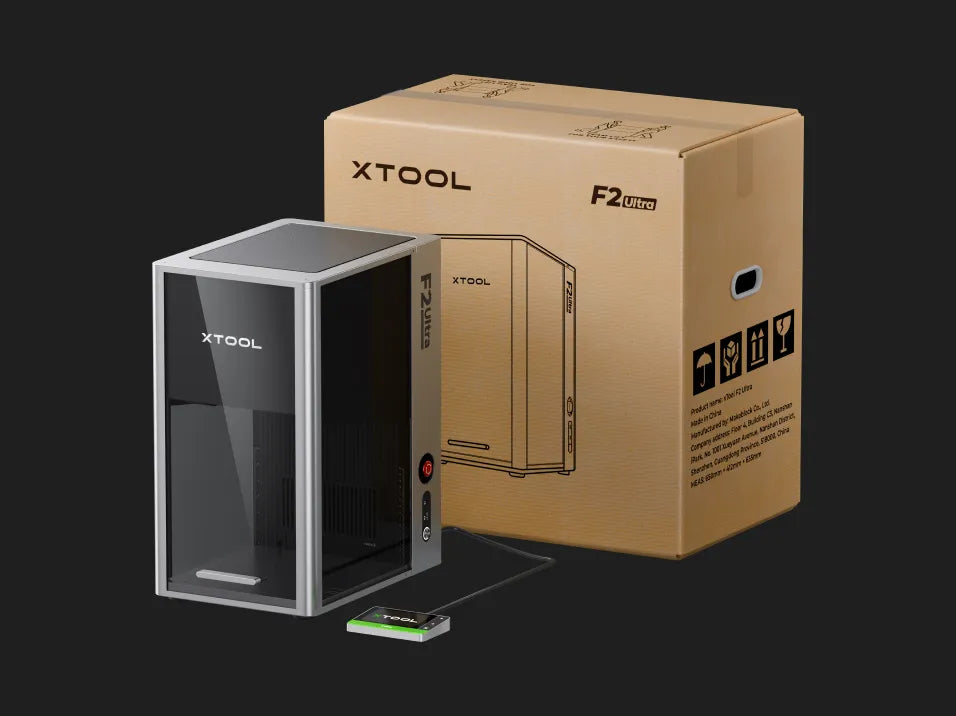

Pre-Assembled

Ensure reliable performance, without setup errors.

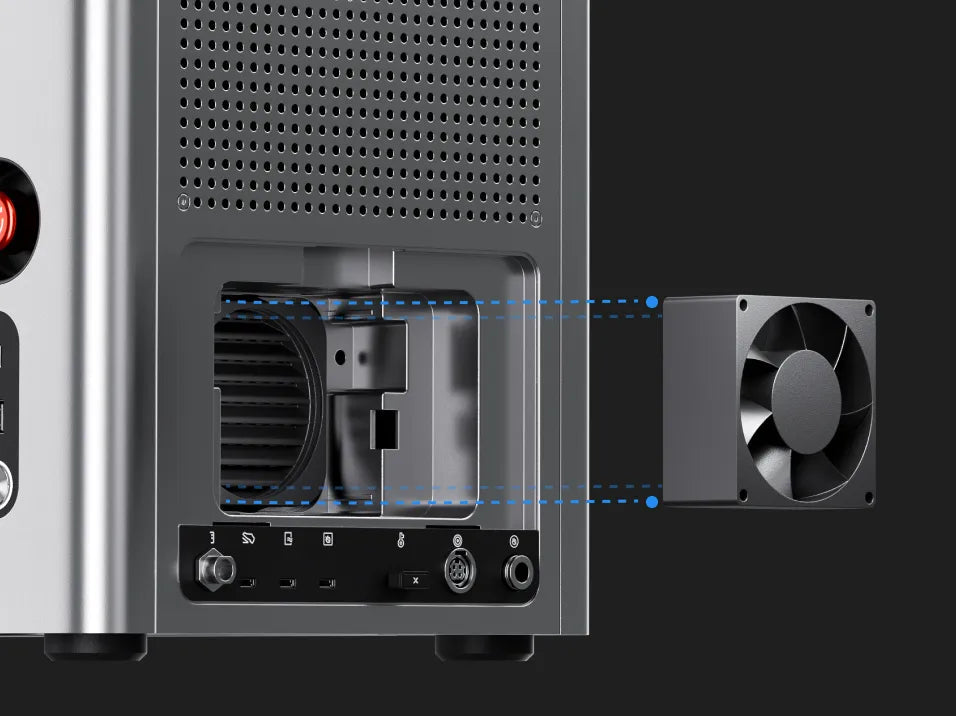

Detachable Fan

Easily remove the fan with one click for tool-free maintenance.

xTool F2 Ultra: 60W MOPA & 40W Diode Dual Laser Engraver FAQs

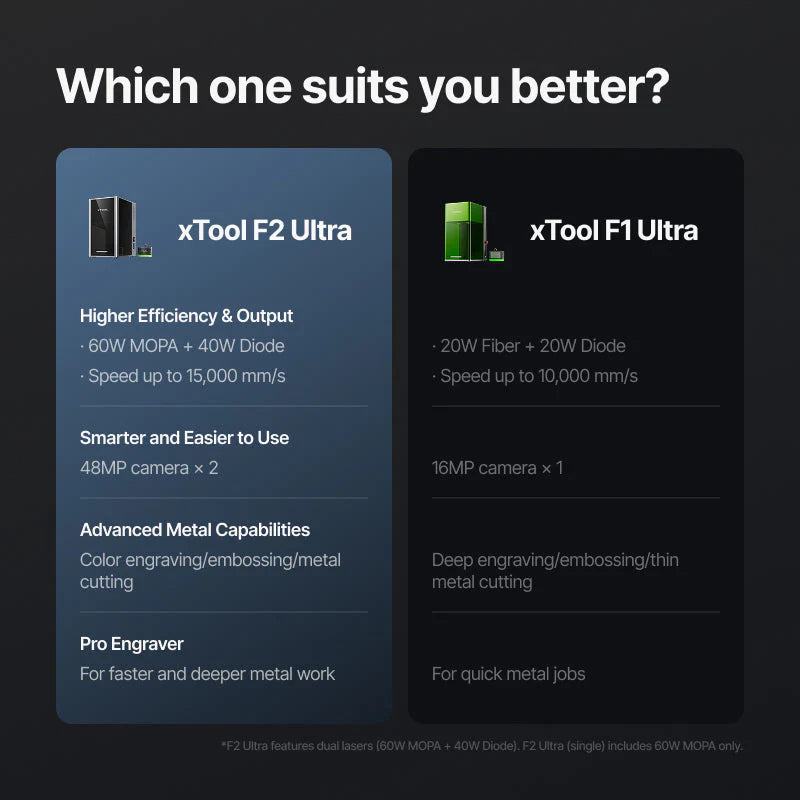

What's the difference between xTool F2 Ultra, xTool F2 Ultra (Single), and xTool F1 Ultra?

F2 Ultra:

Equipped with both a 60W MOPA fiber laser and a 40W diode laser. Best for users who want maximum versatility in materials and processes. Supports color marking on metals, deep engraving, cutting, and processing on non-metal materials.

F2 Ultra(single):

Equipped with only the 60W MOPA fiber laser. Better for users who mainly work with metal materials.

F1 Ultra:
Uses a Q-switched fiber laser, equipped with both a 20W fiber laser and a 20W diode laser, a single camera, speeds up to 10,000 mm/s. Best for standard metal marking and entry-level needs.

What’s the max engraving depth or cutting thickness for xTool F2 Ultra when using metals?

The F2 Ultra can cutbrassup to2mm, stainless steelup to2mm, aluminumup to1mm.Engraving depth depends on the material and settings, but the 60W MOPA fiber laser ensures deep and precise results across a wide range of metals.

What materials can be engraved with xTool F2 Ultra?

xTool F2 Ultra can engrave almost all materials. Metals like gold, silver, aluminum, stainless steel (with multiple colors), platinum, titanium (with multiple colors), and others. Non-metals like wood, acrylic, plastic, slate, glass, paper, cardboard, and others.

What is the warranty for the xTool F2 Ultra?

xTool F2 Ultra comes with a 12 months warranty.

How large is the working area provided by xTool F2 Ultra?

The working area is 8.6 × 8.6 inches (220 × 220 mm) and 8.6 ×19.6 inches (220×500 mm) with the conveyor.
